Support of "LocationLink" for the "onDefinition"-Method

[NLueg]

Hello everyone.

First of all, thank you for the work so far. The client helped very much with implementing an editor.

Background

I currently work on a language-server for the DSL openVALIDATION.
During the implementation, I considered most of the functions of the LSP, including the "GoTo-Definition" function.

My Problem

During to the fact, that openVALIDATION is close to a natural language, we don't have any brackets or use the indentation for separating different elements of the grammar. That's why I need to consider the exact range of the definition of a variable.
This is also part of the LSP, but not of the monaco-languageclient.

The monaco-languageclient can only use the class Location, which holds the range and the name of the requested reference. The LSP provides the class LocationLink which additionally holds the range of the definition of the variable.
Therefore I wanted to use this class for implementing the feature. This actually leads to an uncaught error inside the monaco-languageclient. The vscode-language-client can work fine with the same implementation.

Additional Context

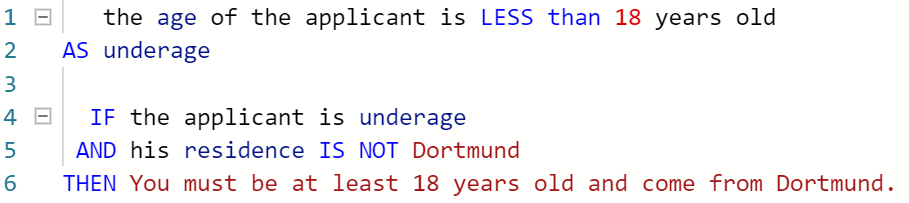

In the following, I use a sample openVALDATION-Code which consists of a rule and a variable.
The variable is named underage and is located in the first two lines. Inside the second block, you can find the rule, which uses the variable in the first condition. I won't explain the rest of it, because this is are the relevant points of the following code:

As I said, openVALIDATION doesn't use any brackets or indentations to separate elements.
The elements of openVALIDATION are separated with blank lines.
If I am correct, the monaco-client uses the Location class and tries to find the whole definition with the defined brackets.

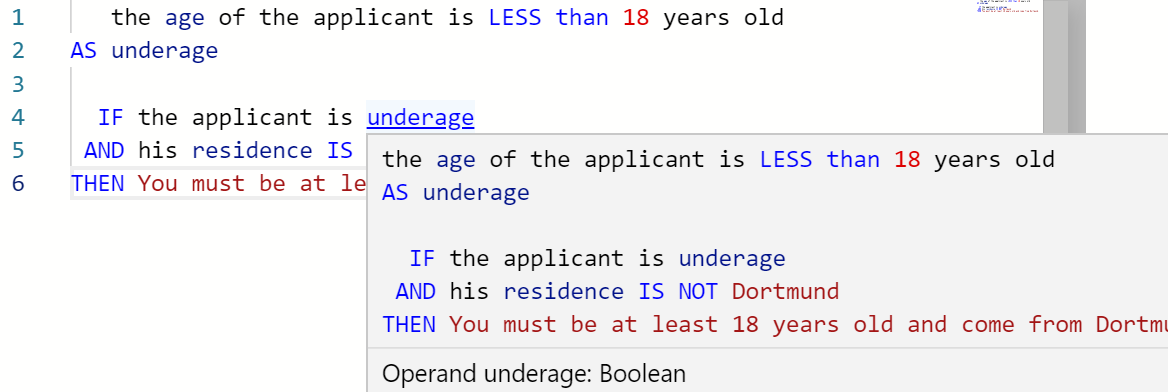

I now try to look at the definition of the variable underage with the corresponding reference inside the rule. The "brackets-problem" yields to the following documentation:

As you cant see, just the whole code will be displayed, because monaco doesn't recognize the end of the variable.

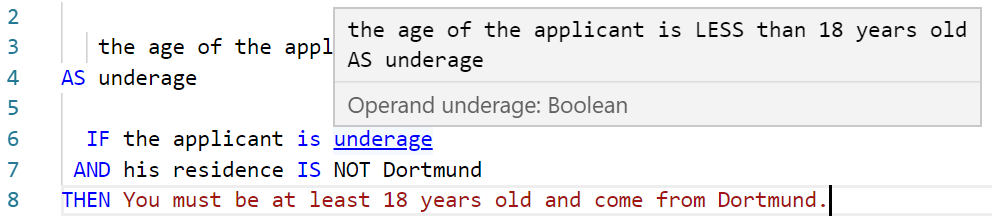

That's why I started using the class LocationLink and integrated this solution inside VSCode.
This leads to the following result:

The exact same code yields to the following error inside the monaco-languageclient, because the LocationLink class is unkown to the client.

I tried to implement the support for LocationLink by myself to create a pull request, but frankly, I wasn't very successful. Sorry for the long post but I wanted to provide all relevant information.
Thank you very much for helping me.

[rcjsuen]

@NLueg Did you look the asLocation function at line 635 of ProtocolToMonacoConverter? What does the item look like? I guess its uri property is undefined?

[rcjsuen]

Based on the capabilities that are being sent to the language servers, linkSupport is advertised as being true so LocationLink should be supported.

[NLueg]

@rcjsuen Thank you for your fast response!
Yes, I looked at the asLocation function and there is the problem I think.
The uri is undefined in this case, because the attribute has another name in the LocationLink object.

Here the definition for Location:

export interface Location {
    uri: string;
    range: Range;
}

and the definition for LocationLink:

export interface LocationLink {
    originSelectionRange?: Range;
    targetUri: string;
    targetRange: Range;
    targetSelectionRange: Range;
}

As you can see, the naming of the attributes is quite different.
In asLocation is an object required, that contains an uri and range attribute which is not the case in the LocationLink.
