feat: support multiple coordinates and fallback coordinates in event layers (DHIS2-8165)

[turban]

Fixes: https://dhis2.atlassian.net/browse/DHIS2-8165

This PR adds support for multiple event coordinates field:

• Event coordinate
• Enrollment coordinate *
• Tracked entity coordinate *
• Program stage data elements of type coordinates
• Program tracked entity attributes of type coordinate *

*) Only for programs with enrollment

The same fields are available as a fallback coordinate, in addition the "org unit coordinate" can be a fallback.

We also support cascading fallback coordinates for programs with enrollment:

• Enrollment > event > tracked entity > org unit coordinate

To see event clustering when testing this branch locally you need to set the glyphs in components/map/MapApi.js:
const glyphs = 'http://localhost:8082/fonts/{fontstack}/{range}.pbf'

It is hard to test all the coordinate fields until we get sufficient demo data.

Comments:

• The check for "spatialSupport" was removed as PostGIS is now a DHIS2 requirement (= all instances have spatial support)
• buildEventGeometryGetter was simplified as the event coordinate is only returned in the main "geometry" field

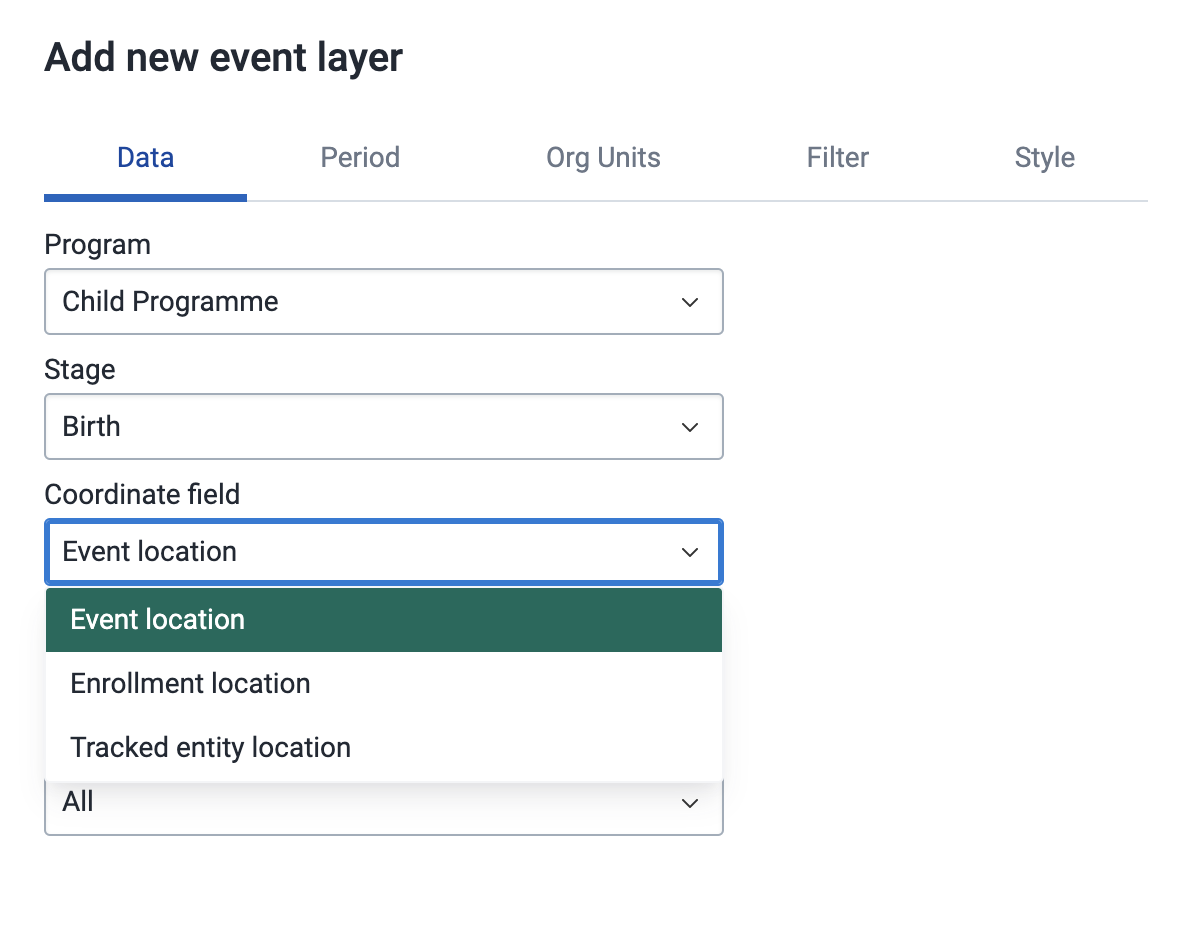

Coordinate fields for a tracker program:

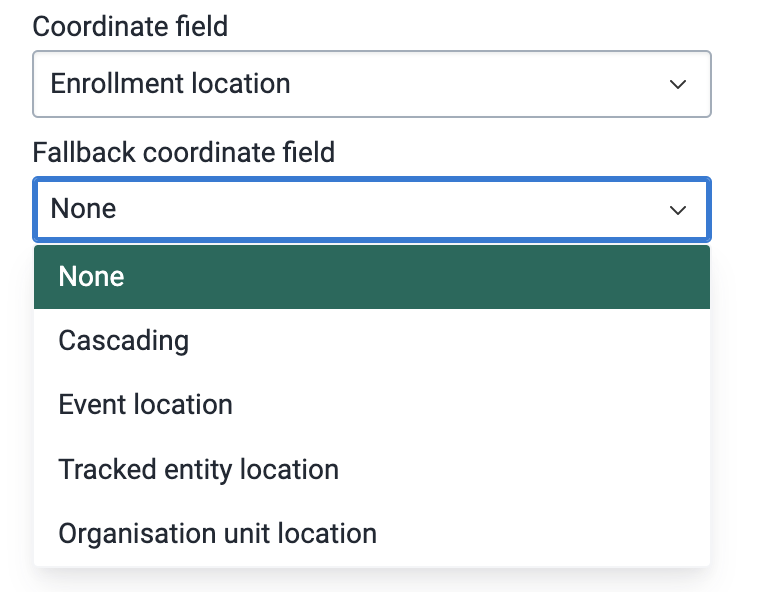

Fallback coordinates for the same program:

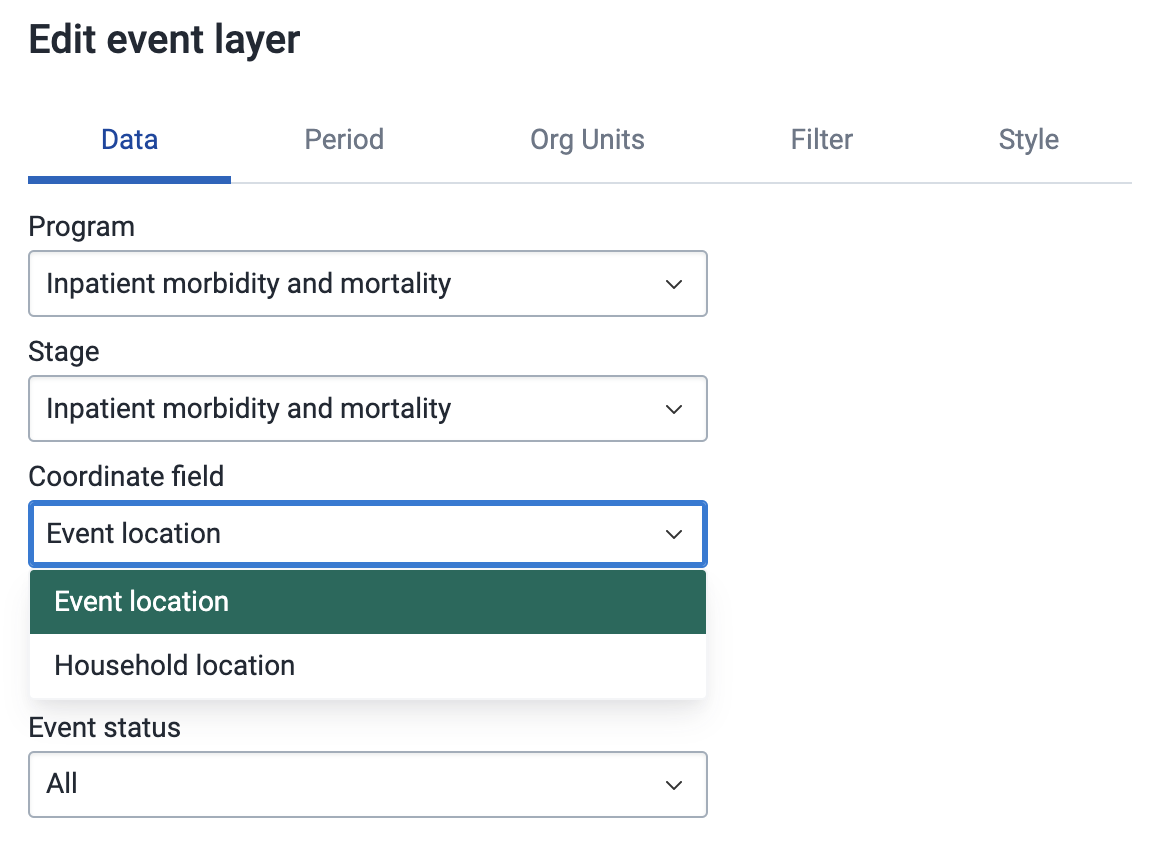

Coordinate fields for a non-tracker program:

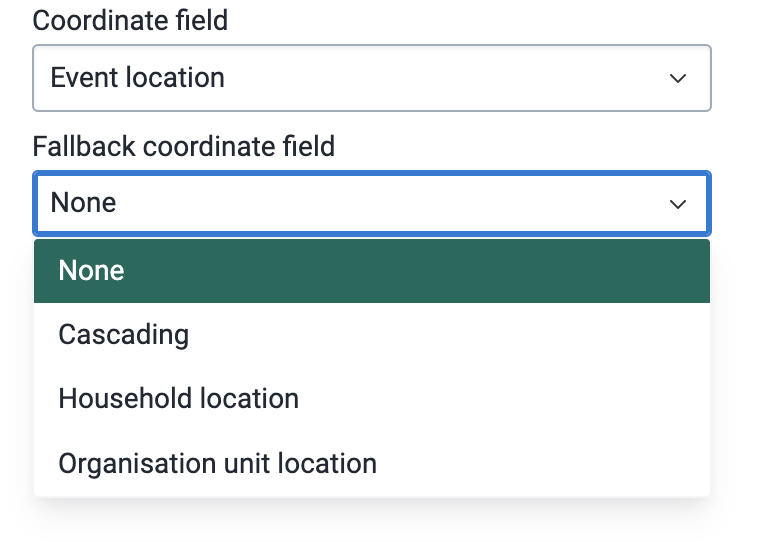

Fallback coordinates for the same non-tracker program:

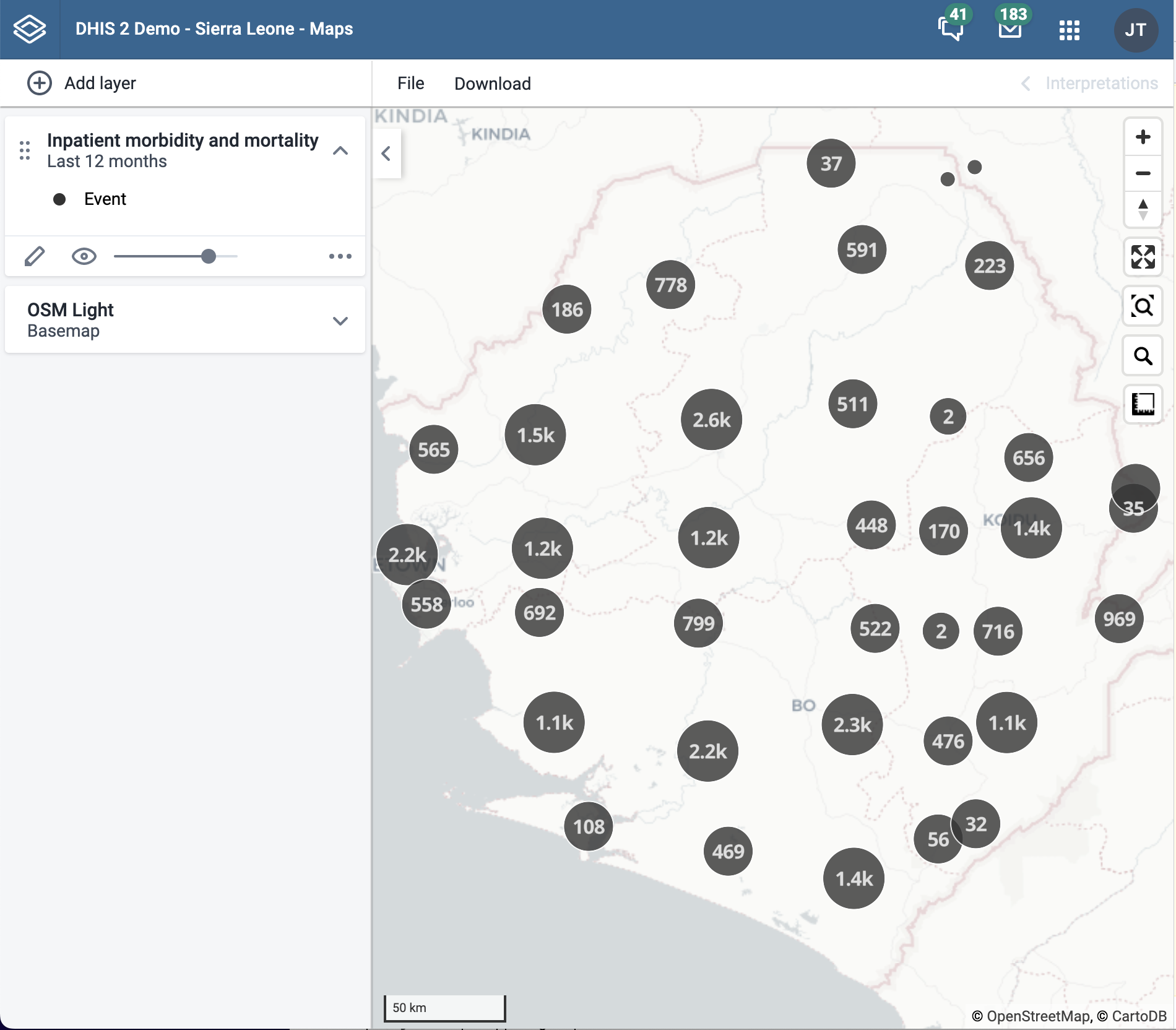

Events from program with "household coordinate" and no fallback:

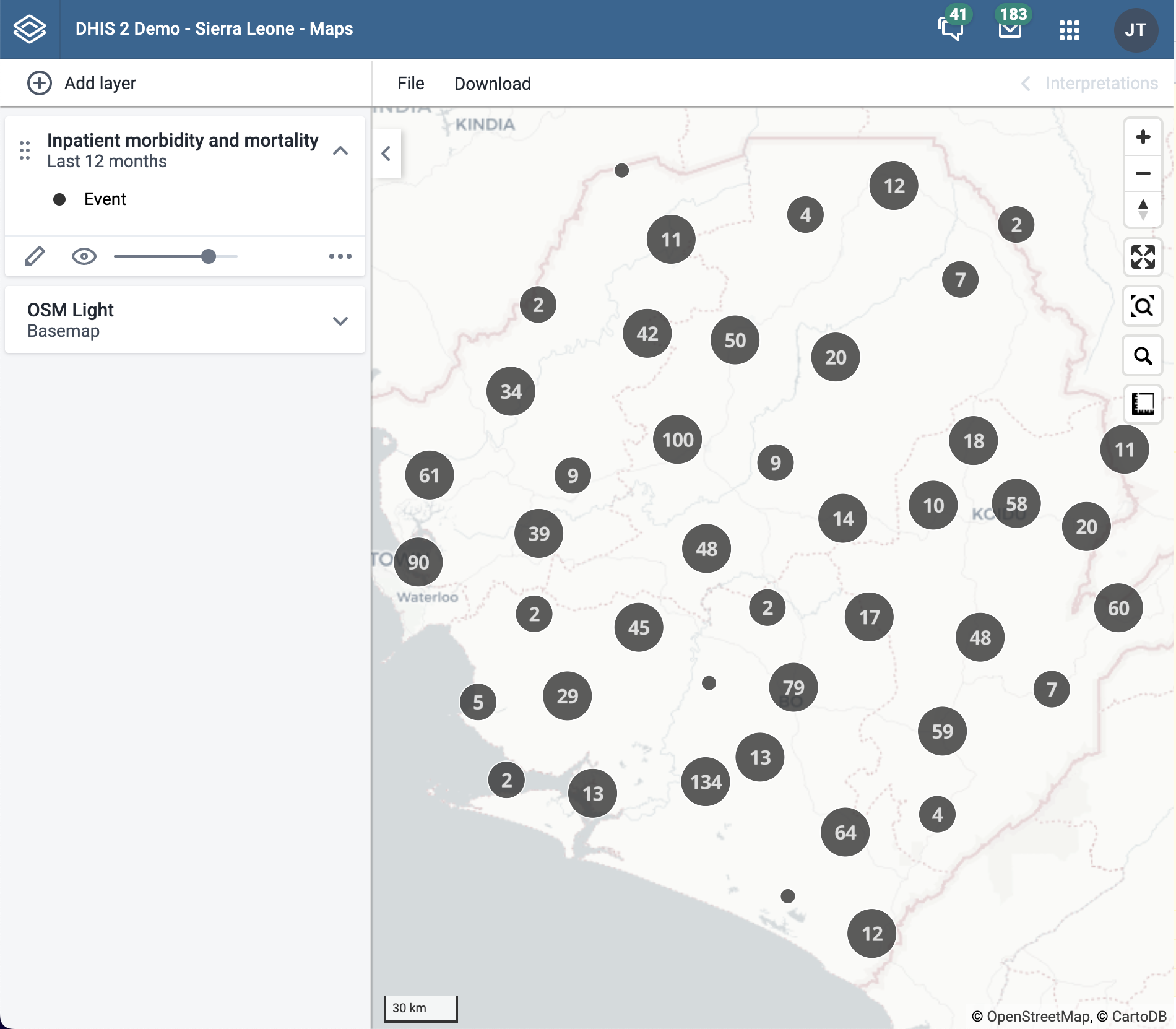

Events from program with "household coordinate" and cascading fallback:
