Mission Planning: Fix crosshatch survey path detouring to polygon corner

[ArturoManzoli]

Problem:

• With no turnaround distance, consecutive survey transects were joined by moveAlongEdge walking the polygon ring in fixed vertex order, which always inserted the next polygon corner between lines.
• On a rectangular north/south survey the vehicle ran a line to the edge, turned off to a far corner, did a 180, then came back to the next line — poor for photogrammetry coverage and risky for the towfish.

Fix:

• moveAlongEdge now finds the ring edge each transect endpoint lies on and returns only the vertices between them along the shorter perimeter direction (empty when both share an edge, giving a direct connector).
• Transect connectors are now direct hops that stay inside the survey area; the far-corner detour is gone.
• Made moveAlongEdge module-private, since it is only used within utils-map.ts.

Closes #2834

[github-actions]

Automated PR Review (Claude)

0. Summary

Verdict: MINOR SUGGESTIONS

This PR fixes an inefficient survey-transect connector path in the crosshatch survey generator. Previously, moveAlongEdge walked the polygon ring in a fixed vertex order and always injected the next corner between consecutive transect lines, causing the vehicle to detour to a far polygon corner. The new implementation finds which ring edge each transect endpoint lies on, collects the ring vertices between them in both directions, and picks the shorter perimeter path (or returns an empty path when both endpoints share the same edge). The moveAlongEdge function is also made module-private, and two clean helpers (findRingEdgeIndex, pathLengthThroughVertices) are extracted.

Minor suggestion to address: 1.1.

1. Correctness & Implementation Bugs

1.1 (minor) — booleanPointOnLine may fail on floating-point-imprecise points. findRingEdgeIndex uses turf.booleanPointOnLine without an explicit epsilon option. Transect endpoints are generated by intersecting scan lines with the polygon boundary, so they should lie very close to an edge, but floating-point drift can cause booleanPointOnLine (default tolerance ≈ 0) to return false for all edges, making findRingEdgeIndex return -1. When both return -1, moveAlongEdge returns [] and the connector degrades to a direct line (functionally safe), but this silently skips the edge-hugging logic. Consider passing a small epsilon (e.g. { epsilon: 1e-6 }) to booleanPointOnLine for robustness.

src/libs/map/utils-map.ts (new findRingEdgeIndex function, approx. line 434 in the PR):

if (turf.booleanPointOnLine(point, turf.lineString([coords[i], coords[i + 1]]), { epsilon: 1e-6 })) return i

2. AGENTS.md Adherence — ✅

3. Security — ✅

4. Performance — ✅

5. UI / UX — ✅

6. Code Quality & Style — ✅

7. Commit Hygiene — ✅

8. Tests — ✅

9. Documentation — ✅

10. Nitpicks / Optional

10.1 (nit) — The pathLengthThroughVertices helper builds a new turf.point for every pair inside the loop. Since it is only called twice per connector (forward vs. backward), this is not a performance concern, but if you ever reuse it on longer paths you could accumulate with a single turf.length(turf.lineString(points)) call instead of pointwise turf.distance.

Generated by Claude. This is advisory; a human reviewer must still approve.

[ArturoManzoli]

Done:

• (1.1) passed { epsilon: 1e-6 } to booleanPointOnLine in findRingEdgeIndex so float drift on the clipped boundary points still matches their edge instead of silently falling back to a direct connector.
• (10.1) simplified pathLengthThroughVertices to a single turf.length(turf.lineString(...)) call.

[ArturoManzoli]

/review

[github-actions]

Automated PR Re-review 2 (Claude)

Comparing 0117bff01bd2bdffffb222cb0a83e1e7581baed0 → 83ffeec06a81bcc6a1f7cfbc090b593dcde9f3a1

Previous findings status

#	Finding	Severity	Status
1.1	booleanPointOnLine missing epsilon in findRingEdgeIndex	minor	✅ Addressed
10.1	pathLengthThroughVertices building pointwise turf.point pairs instead of single turf.lineString	nit	✅ Addressed

Discussion since last review

@ArturoManzoli confirmed both findings were addressed: "(1.1) passed { epsilon: 1e-6 } to booleanPointOnLine" and "(10.1) simplified pathLengthThroughVertices to a single turf.length(turf.lineString(...)) call". The current diff confirms both changes are in place.

New findings

0. Summary

Verdict: READY TO MERGE

Both previous findings have been addressed. The findRingEdgeIndex helper now passes { epsilon: 1e-6 } to booleanPointOnLine, and pathLengthThroughVertices now uses a single turf.length(turf.lineString(...)) call. No new issues found in the incremental changes. The single commit is clean and well-scoped.

1. Correctness & Implementation Bugs — ✅

2. AGENTS.md Adherence — ✅

3. Security — ✅

4. Performance — ✅

5. UI / UX — ✅

6. Code Quality & Style — ✅

7. Commit Hygiene — ✅

8. Tests — ✅

9. Documentation — ✅

10. Nitpicks / Optional — ✅

Generated by Claude. This is advisory; a human reviewer must still approve.

[ArturoManzoli]

Ready to go.

[rafaellehmkuhl]

@ArturoManzoli how should I test it to confirm the bug is fixed?

[ArturoManzoli]

@ArturoManzoli how should I test it to confirm the bug is fixed?

The bug placed extra waypoints on the far left edge of the crosshatch mission, so you can run a SITL vehicle through the mission, or just visually confirm by checking the WP numbers on the mission.

[rafaellehmkuhl]

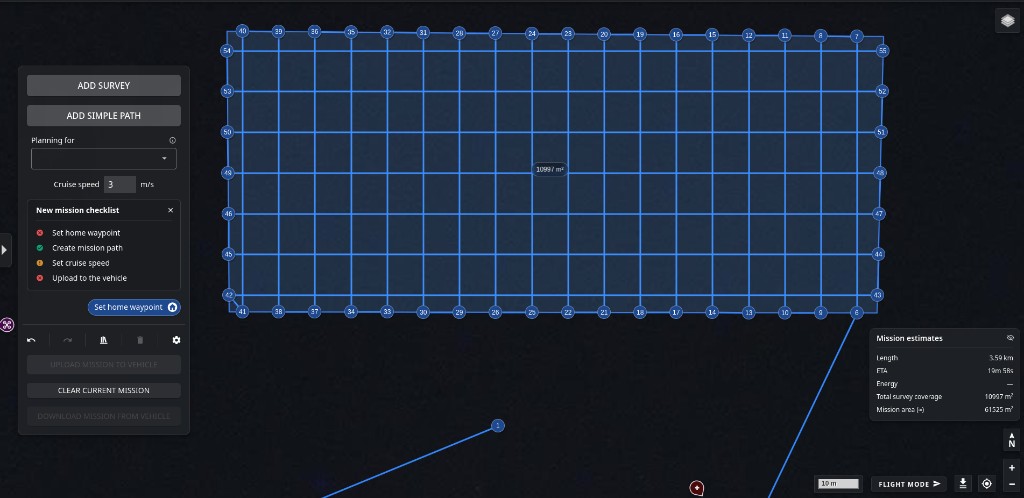

@ArturoManzoli just to confirm is this the expected result?

Notice there's a 180 degree turn on waypoint 15.

[ArturoManzoli]

@ArturoManzoli just to confirm is this the expected result?

Notice there's a 180 degree turn on waypoint 15.

Not at all. This was pretty much the bug itself. I'll check what went wrong

[ArturoManzoli]

@ArturoManzoli just to confirm is this the expected result?

Notice there's a 180 degree turn on waypoint 15.

Fixed

[rafaellehmkuhl]

Much better! Nice work!
