WhatTheCipher

Modern TLS/SSL assessment framework - protocols, ciphers, certificates, grading & reports.

by Anmol K Sachan · @FR13ND0x7F

---

What it is

WhatTheCipher started life as a small wrapper around nmap's ssl-enum-ciphers that scraped ciphersuite.info with curl+grep and dumped an HTML page. Version 2 is a complete rewrite: a lightweight, native Python TLS scanner that enumerates protocols and cipher suites by crafting its own ClientHello messages at the socket level — the same technique used by SSLyze and testssl.sh — so it can test legacy protocols and individual suites even when the local OpenSSL has them compiled out. No HTML scraping anywhere; cipher metadata is derived from IANA suite names plus a bundled JSON database.

Think of a small, readable blend of the ideas behind SSLyze, testssl.sh, the Mozilla SSL Configuration Guide and the SSL Labs rating model — packaged as a single pip install.

Features

• Native TLS engine — protocol detection (SSLv3 → TLS 1.3) and fast pick-and-remove cipher enumeration via raw handshakes. No OpenSSL legacy build required.
• Certificate analysis — subject/issuer, SAN, validity, expiry countdown, signature algorithm, key type & size, SHA-1 detection, self-signed / expired / hostname-mismatch checks, OCSP & CRL endpoints, must-staple.
• Passive vulnerability detection — DROWN, POODLE, BEAST, Sweet32, FREAK, Logjam, Lucky13, RC4, NULL/anonymous suites, ROBOT indicator, CRIME, missing forward secrecy, and more, each mapped to its CVE.
• SSL Labs-style grading — A+ … F with documented caps and a 0–100 score.
• Actionable recommendations — referenced to the relevant RFCs and the Mozilla SSL Configuration Guide.
• Parallel scanning — ThreadPoolExecutor, hundreds of hosts at once, live Rich progress.
• Rich terminal UI — colored panels, tables and a summary dashboard.
• Four report formats — a self-contained interactive HTML dashboard (dark/light, search, sortable tables, copy-to-markdown, charts), plus JSON, Markdown and CSV.
• Flexible input — domains, IPs, URLs, host:port, target files, CIDR ranges and stdin.
• STARTTLS — SMTP, IMAP, POP3, FTP, XMPP.
• Interop — ingest existing nmap ssl-enum-ciphers XML.

Installation

# from source
git clone https://github.com/anmolksachan/WhatTheCipher
cd WhatTheCipher
pip install .

# or, once published
pip install whatthecipher

Requires Python ≥ 3.11. Dependencies: rich, cryptography.

Usage

wtc example.com                       # single host
wtc example.com -p 8443               # custom port
wtc example.com google.com github.com # several hosts
wtc targets.txt                       # a file of targets
wtc --cidr 192.168.1.0/24             # a whole range
cat hosts.txt | wtc --stdin           # from stdin

# reports (written into ./wtc-report/ by default, override with -o)
wtc example.com --html --json --csv --markdown -o report/

# performance
wtc targets.txt --threads 50 --timeout 5

# STARTTLS
wtc mail.example.com --starttls smtp -p 587

# ingest an existing nmap scan
wtc --nmap-xml scan.xml

# quieter / louder
wtc example.com --no-banner --no-details
wtc example.com --verbose --log-file scan.log

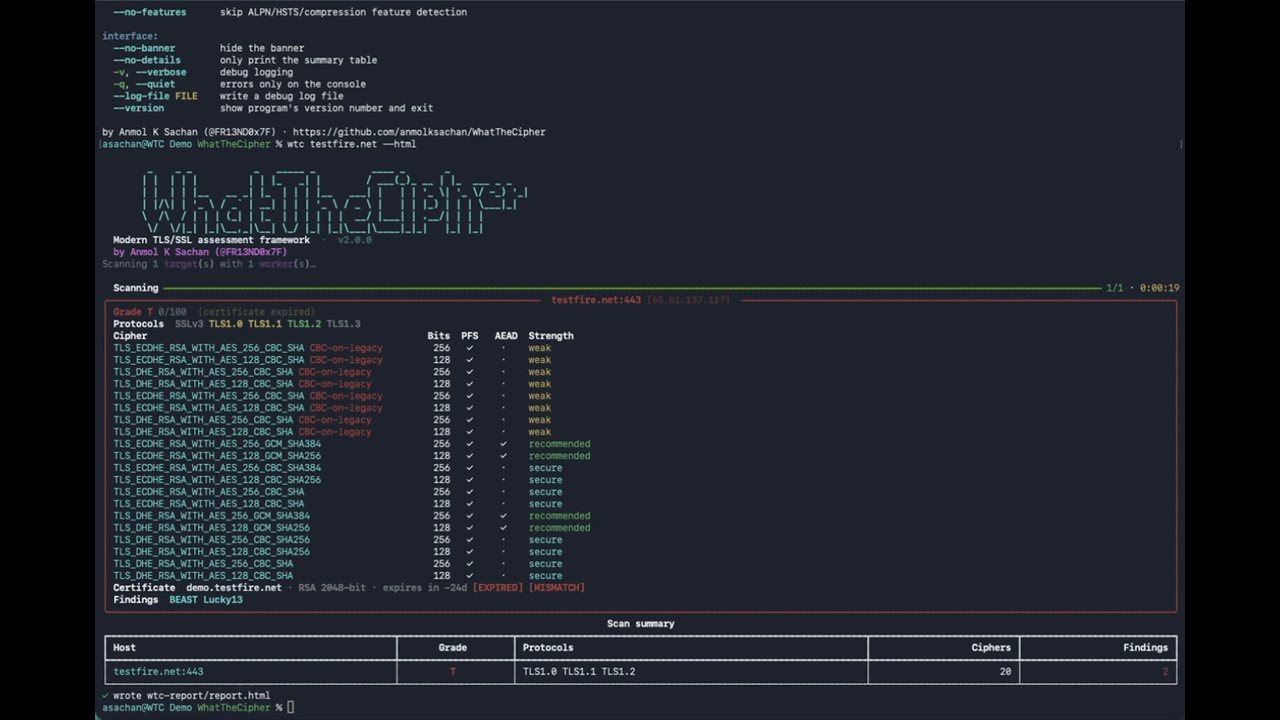

🎥 Demo

▶️ Click the image to watch the full demo

All flags

Flag	Purpose
-p, --port	Default port (443)
--cidr RANGE	Scan a CIDR range (repeatable)
--stdin	Read targets from stdin
--starttls PROTO	smtp / imap / pop3 / ftp / xmpp
--nmap-xml FILE	Ingest nmap ssl-enum-ciphers XML
--threads N	Concurrent workers (20)
--timeout S	Per-connection timeout (8s)
--json / --html / --csv / --markdown	Report formats
-o, --output DIR	Report output directory
--no-cert / --no-features	Skip cert / feature detection
--no-banner / --no-details	Quieter terminal output
-v/--verbose, -q/--quiet, --log-file	Logging

The process exit code is non-zero (3) if any host grades F/T/M, so it drops straight into CI gates.

Architecture

whatthecipher/
├── cli.py            # argparse CLI, wiring
├── scanner.py        # orchestration, ScanResult, ThreadPoolExecutor
├── tls.py            # native TLS engine: ClientHello, ciphers, cert, STARTTLS
├── parser.py         # target parsing (domain/IP/URL/CIDR/file/stdin) + nmap XML
├── grading.py        # SSL Labs-style grade + passive vuln detection
├── recommendations.py# remediation advice (RFC / Mozilla references)
├── reporter.py       # Rich terminal output
├── exporters/        # html · json · markdown · csv
├── utils/            # logger · colors · banner
├── modules/          # optional: crt.sh (done), JARM/JA3, Shodan/Censys/SSL Labs
└── data/             # bundled IANA cipher-suite database

Output formats

JSON — machine-readable, one object per host with full protocol, cipher, certificate, vulnerability and recommendation detail. Ideal for automation.

{
  "tool": "WhatTheCipher",
  "results": [{
    "target": "example.com", "port": 443,
    "grade": { "letter": "A", "score": 97 },
    "protocols": {
      "TLS1.3": { "supported": true, "ciphers": [
        { "name": "TLS_AES_256_GCM_SHA384", "bits": 256,
          "forward_secret": true, "aead": true, "strength": "recommended" }
      ]}
    },
    "certificate": { "subject": "example.com", "days_until_expiry": 61 },
    "vulnerabilities": [ { "id": "POODLE", "present": false } ]
  }]
}

HTML — a single self-contained file (no external assets, works offline): grade-distribution donut, risk overview, per-host cards with an "instrument panel" protocol strip, sortable cipher tables, certificate detail, findings and copy-to-markdown recommendations, plus a dark/light toggle and live search.

Markdown — an executive-summary table followed by a per-host section, ready to paste into a pentest report.

CSV — one summary row per host for triage in a spreadsheet.

Optional modules

whatthecipher/modules/ holds opt-in enrichers, decoupled to keep the core fast:

• ct.py — implemented crt.sh Certificate Transparency search / subdomain discovery (standard library only).
• fingerprint.py — a working ServerHello fingerprint, plus JARM / JA3S scaffolds with references to the reference algorithms.
• integrations.py — documented stubs for Shodan, Censys, Qualys SSL Labs, Mozilla config comparison and DNS CAA, each with a stable signature.

Roadmap

• Full JARM & JA3S fingerprints
• Active Heartbleed / ROBOT / CCS-injection probes
• SSLv2 handshake probe and weak-DH parameter extraction
• STARTTLS for LDAP, MySQL, PostgreSQL, RDP, MQTT, Redis
• HTTP/3 & QUIC detection, DNSSEC & CAA, full HTTP security-header audit
• Shodan / Censys / SSL Labs / Mozilla enrichment wired into the report

Contributing

Issues and PRs welcome. Please run the dev checks before opening a PR:

pip install -e ".[dev]"
pre-commit run --all-files
pytest --cov=whatthecipher

FAQ

Does it need nmap? No — the native engine is self-contained. nmap XML can be ingested for interoperability, but it isn't required.

Can it test SSLv2 / very old protocols my OpenSSL refuses? SSLv3–TLS1.3 are tested with raw handshakes independent of the local OpenSSL. A dedicated SSLv2 probe is on the roadmap.

Is it safe to run against systems I don't own? Only scan hosts you are authorised to test. TLS enumeration is active traffic.

Acknowledgements

Inspired by the excellent work of SSLyze, testssl.sh, nmap's ssl-enum-ciphers, the Mozilla SSL Configuration Guide and Qualys SSL Labs. Cipher metadata follows the IANA TLS Cipher Suite registry.

License

MIT © Anmol K Sachan
