Run a whole team of coding agents from your browser — and actually keep up with them.
📖 Documentation — receptron.github.io/mulmoterminal
- User guide: English — the grid view, everyday workflows, the full feature list, configuration, and mobile push notifications.
- ユーザーガイド: 日本語 — グリッドの使い方・日々のワークフロー・機能一覧・設定・スマホ通知の設定はこちら。
MulmoTerminal turns Claude Code (and OpenAI's Codex)
into a parallel, observable workspace: many agent sessions at once in a grid, each one
color-coded so you see at a glance which are working, which need you, and which are
done — plus rich GUI output, git worktrees with one-click PRs, cost readouts, and a
ping to your phone when a task finishes. One npx command, no Electron, no config.
npx mulmoterminal # starts on http://localhost:34567 and opens your browser

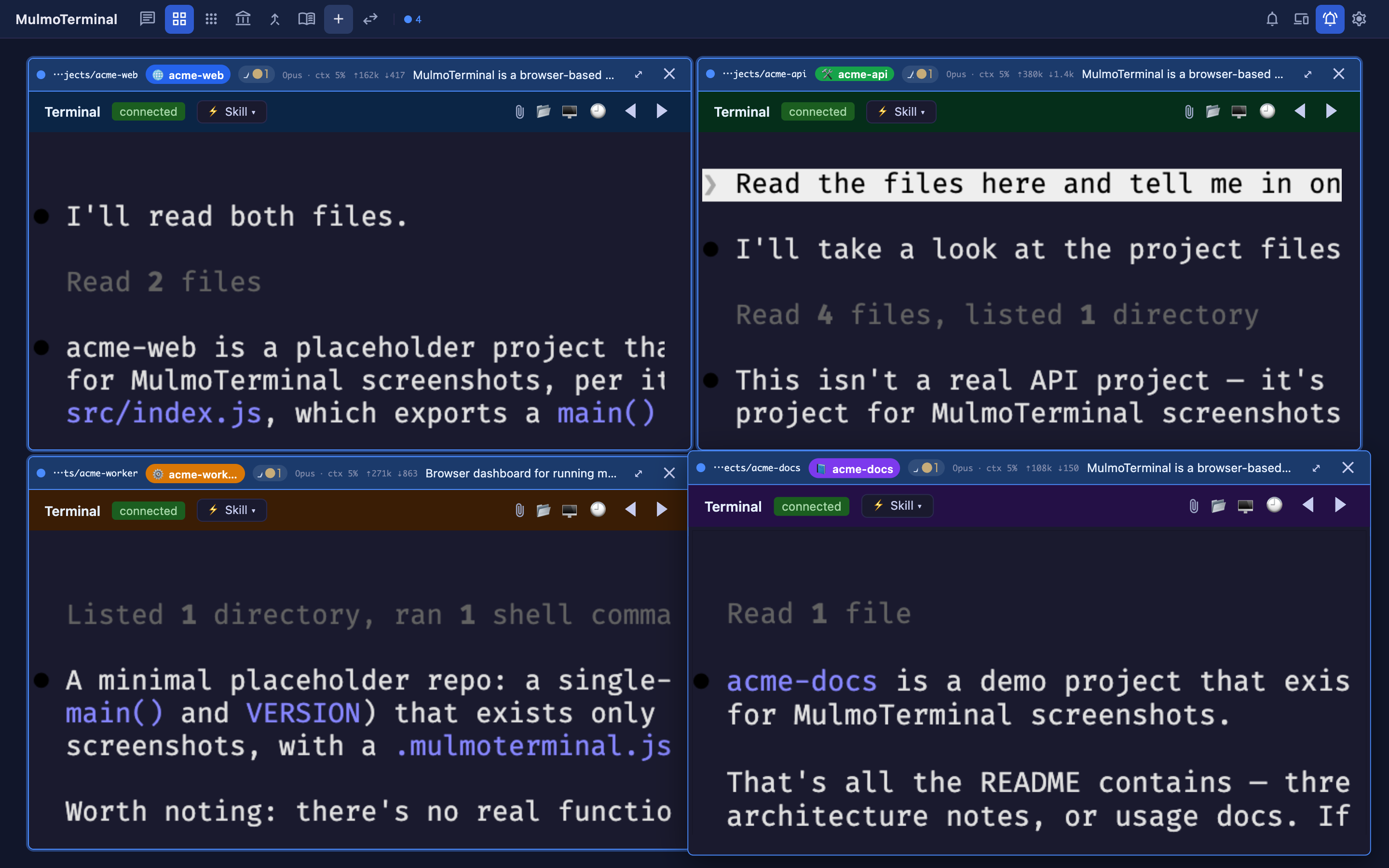

The grid is a cockpit for parallel agents — here, four live Claude sessions, each in its own color-coded project. Every cell's header carries what you need to triage at a glance: model · context %, token counts (⇡in ⇣out), the git branch / changes chip, and an AI summary of what the agent is doing. A cell's border color signals state — working / done (blue), needs-you (amber — e.g. waiting on a permission), idle — with an attention chime so a stuck cell off-screen still pulls you back. Supervise many; only step in where you're called.

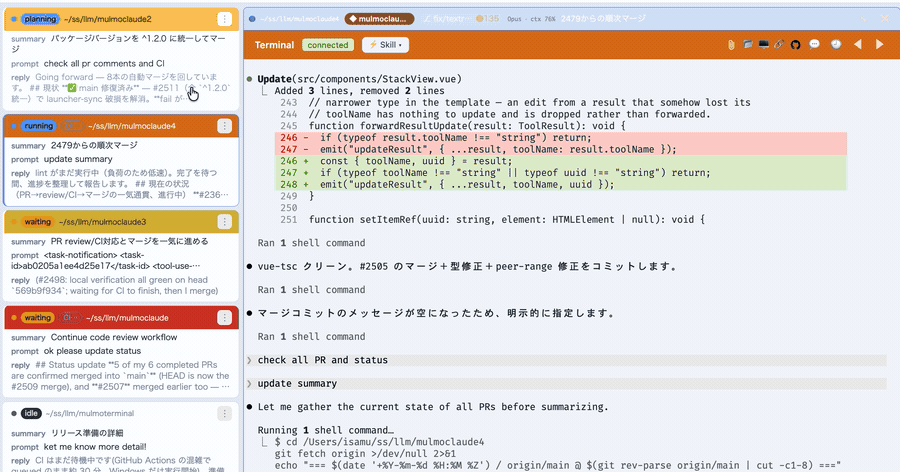

- See every agent at once. A grid of live sessions, each cell color-coded by state — working (blue), blocked / needs a permission (amber), done, unreviewed (blue), idle — with an attention chime and a toolbar tally, so an off-screen agent that's stuck never slips past you. Stop babysitting one terminal; supervise ten. Zoom into one and the cockpit roster keeps everyone else in view — one text row per session with its AI summary, last prompt, latest reply, and the branch's PR phase (draft / CI fail / ready / merged).
- A GUI for your agents, not just a terminal. Beside the terminal, a Canvas panel renders what an agent produces over MCP — documents, forms, charts, generated images, HTML, collection cards — each drawn by its own plugin. The agent doesn't just print text; it hands you an interface.
- Get pulled back from anywhere. A finished — or input-waiting — task sends a Web Push to your phone, and the RemoteHost companion lets you watch sessions and answer with a tap (yes / no / continue) from the phone itself — walk away, get pinged, jump back in.
- Nothing is lost on a restart. With
tmux, every session survives a server crash, restart, ornode --watchreload — a mid-turn agent, a long build, a dev server all keep running and reattach when you come back. - Ship without leaving the grid. Each repo cell shows a git branch chip, isolates work in a one-click git worktree, opens a diff panel, and does commit / push / open PR — so several agents can work the same repo without colliding.

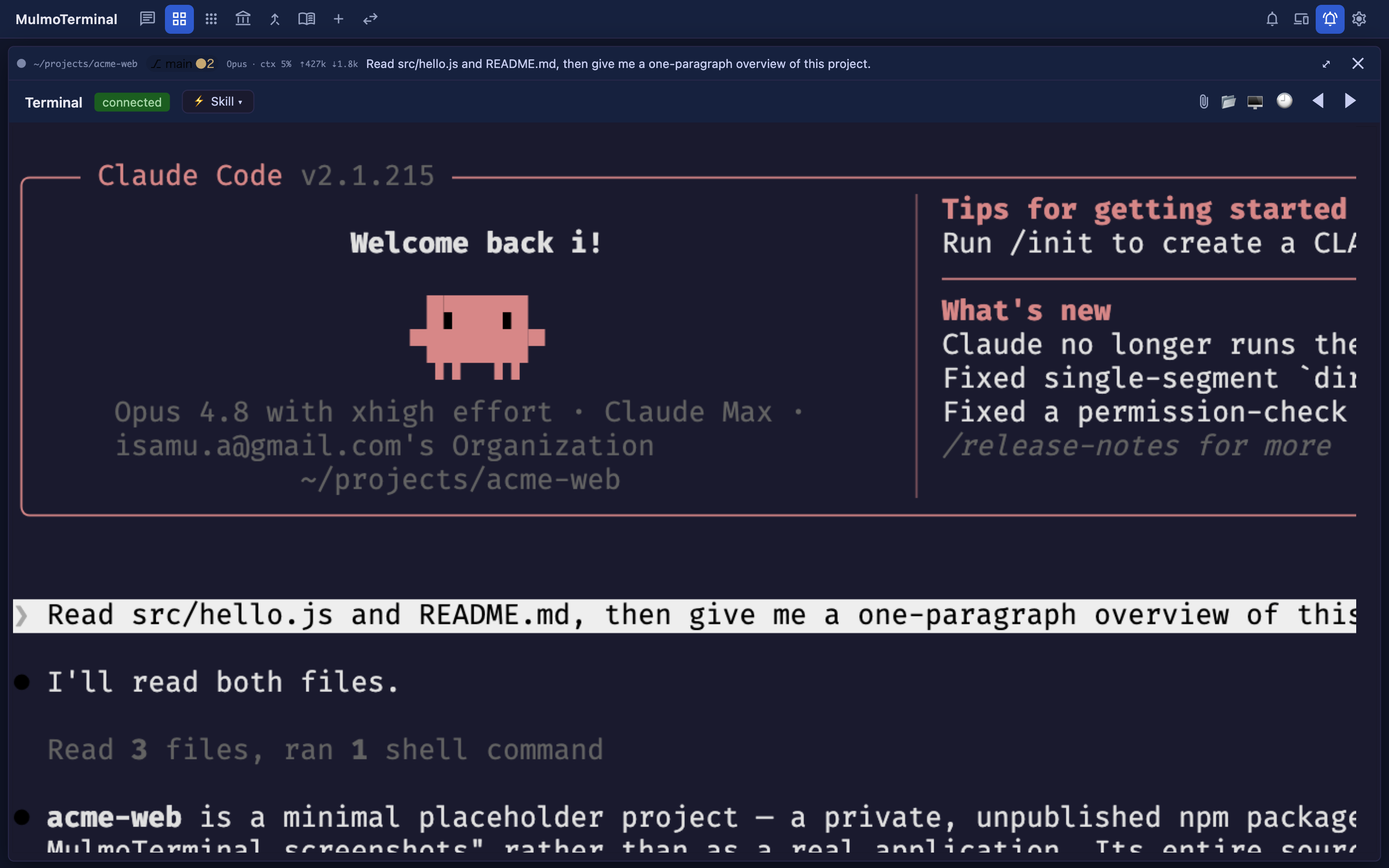

- Know what it's costing. Per-session context %, token, and estimated $ readouts, an activity timeline of tool calls, and AI-summarized cell titles and command-output explanations — so a wall of parallel agents stays legible.

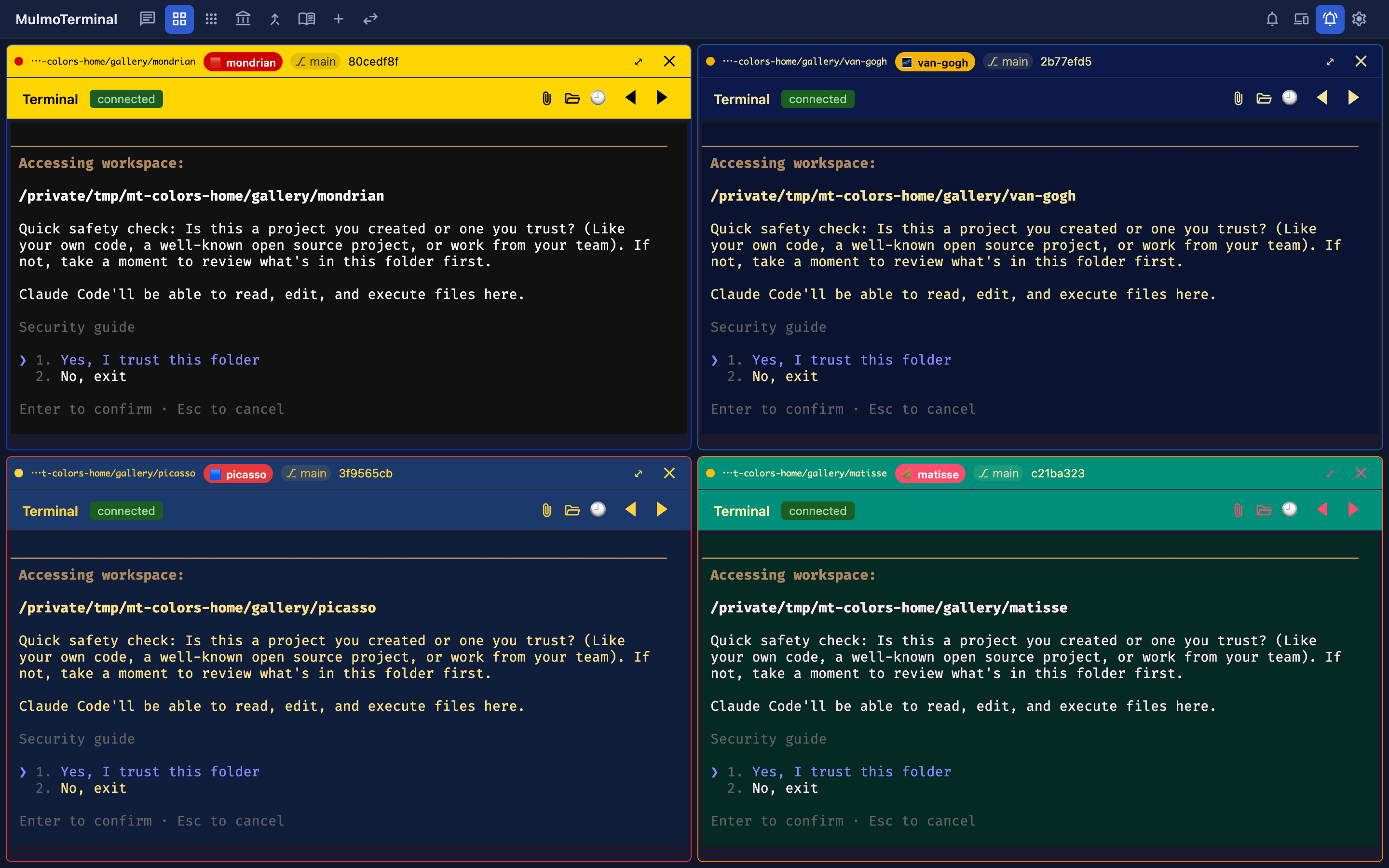

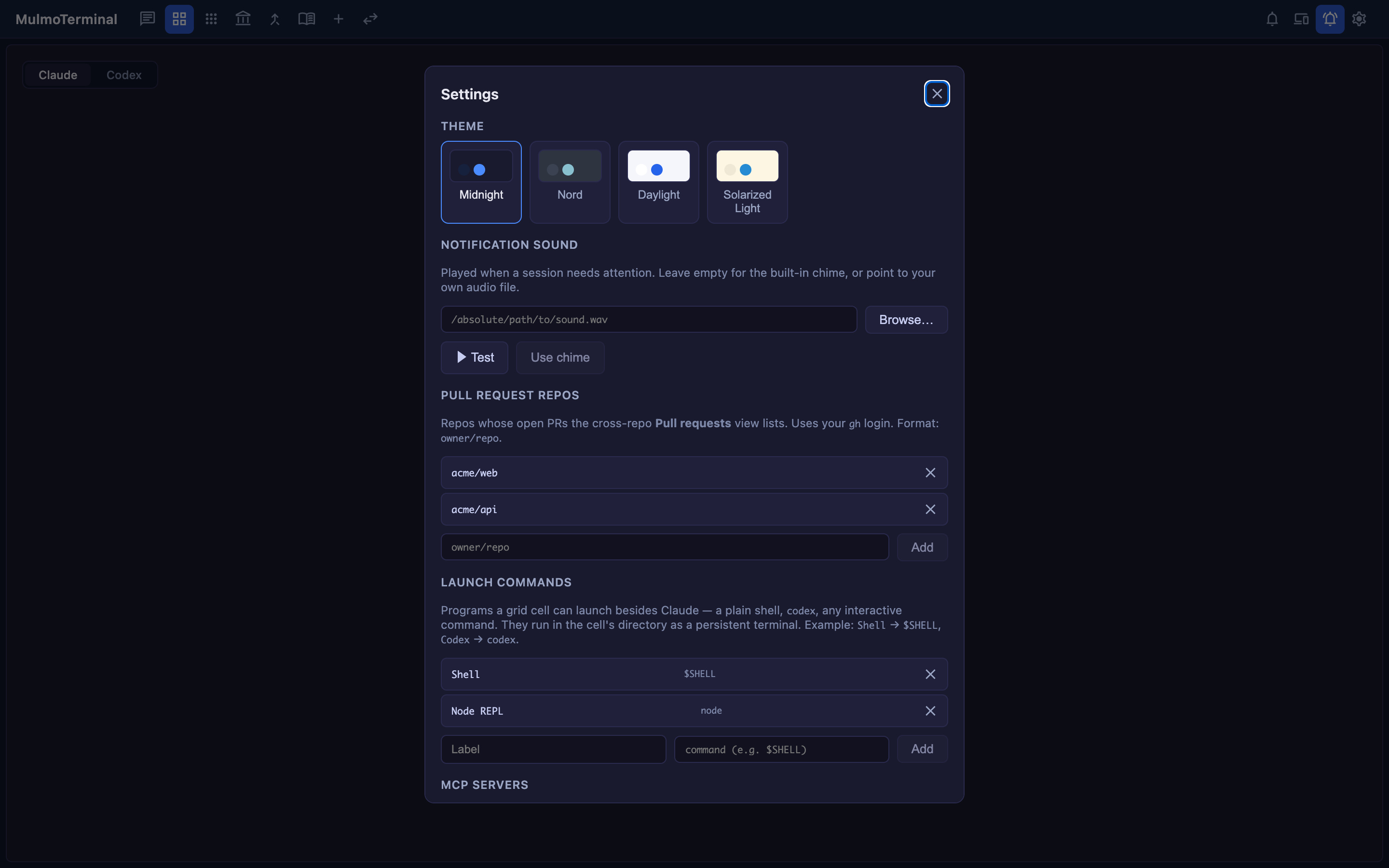

- Make it yours. Per-directory themes, colors, and name badges (
prodin red,stagingin amber), a configurable header (buttons + info chips), custom attention sounds, and Run / Skill menus to launch a project's scripts and.claude/skillsright inside a cell.

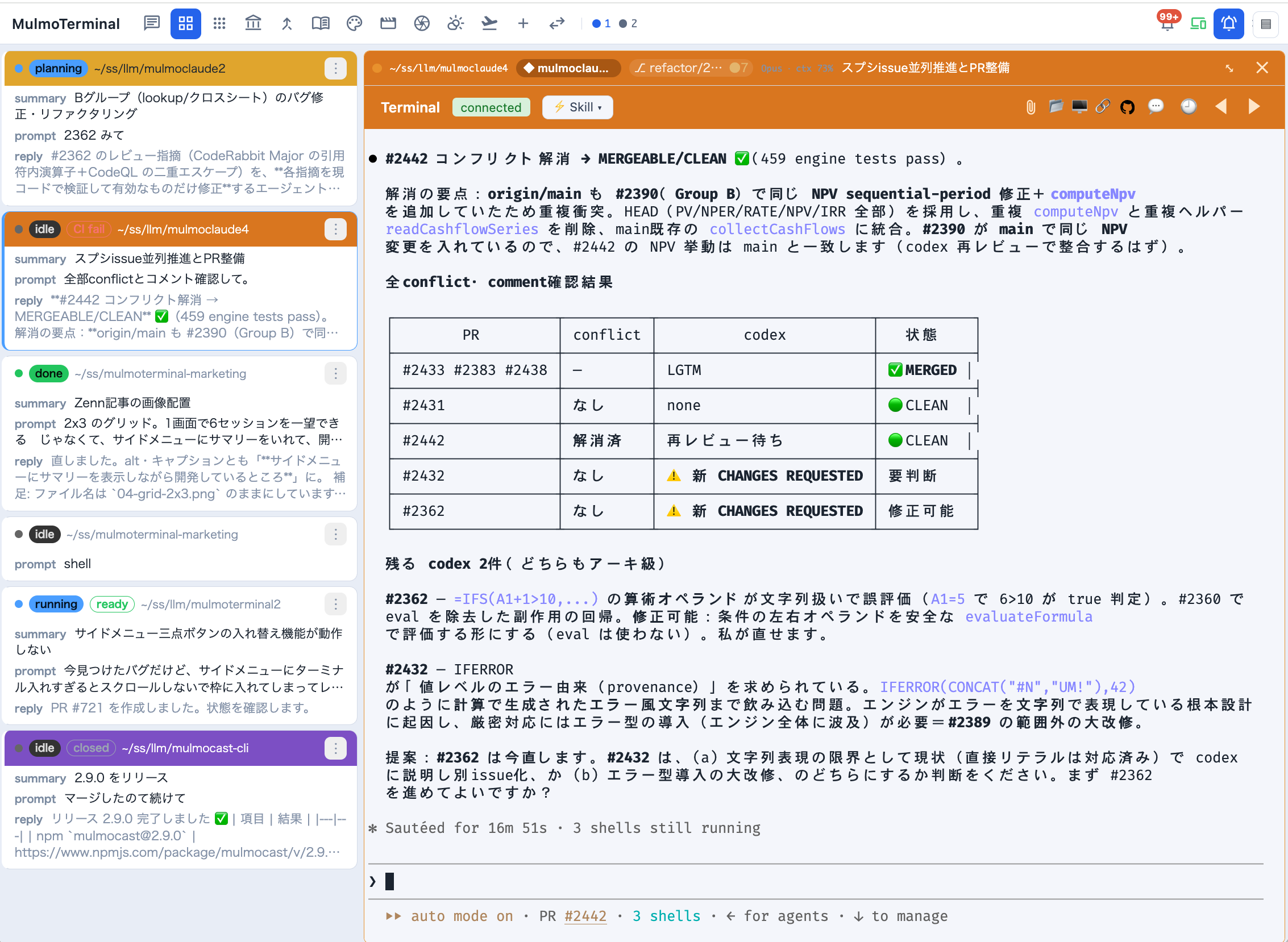

Zoomed in, the cockpit roster replaces thumbnails with information: every session as a text row — directory, AI summary, your last prompt, the agent's latest reply, a status word, and the branch's PR phase badge. Click a row to swap the enlarged terminal.
Each session runs as a real PTY on the server (the agent CLI in a pseudo-terminal) and is streamed to an xterm.js terminal in the browser over a WebSocket. A sidebar lists every session for the project and reflects, in real time, which are working (the agent is thinking) and which need attention (waiting for input, or finished with output you haven't seen) — driven by Claude/Codex activity hooks the server injects per spawn.

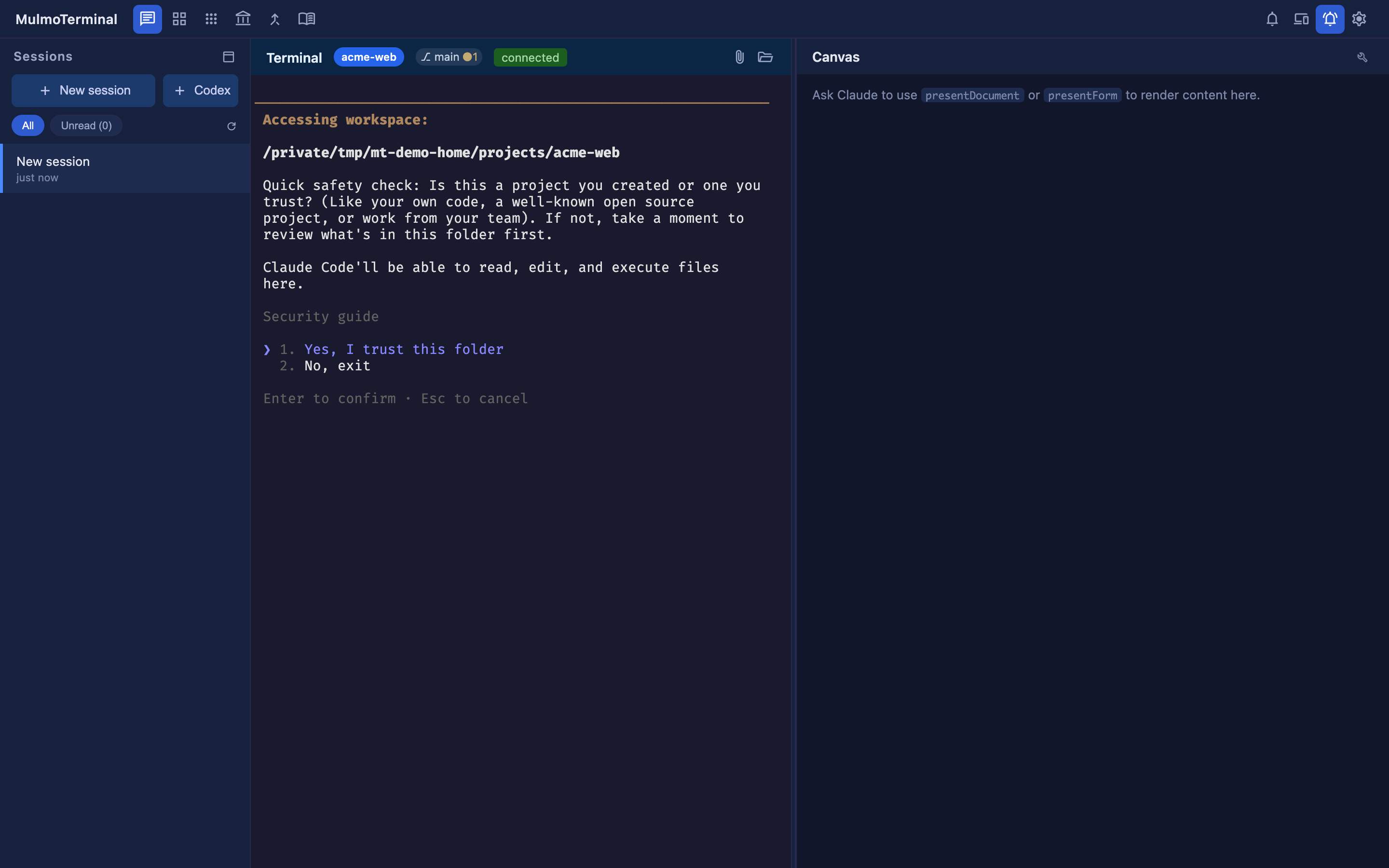

Besides the grid there's a single view for focusing on one agent: the conversation/terminal on the left, and a GUI panel ("Canvas") on the right where the agent's tool calls render as documents, forms, charts, images, and HTML — not just printed text. Switch between the two with the chat / grid icons in the toolbar. The app opens on the grid (/); the single view has its own URL, /chat, so you can bookmark either.
Inserting a file path — like a native terminal, you can put a file's absolute path into
the prompt: drag a file onto the terminal (works where the browser exposes the path via
file:// — Firefox/Safari), or click the 📎 file button in the terminal header, which
asks the local server to open the OS file dialog and inserts the chosen path (works in every
browser, including Chrome). The path is inserted at the cursor — it is not submitted, so you
can review it first.
Clicking a file path — the other direction. A path an agent prints becomes a link, and what it opens is chosen by its extension, so each kind arrives as the thing it is rather than as bytes (files within the session's working directory only):
| A clicked … | opens as |
|---|---|
.md .markdown |
rendered markdown in a new tab — the same sandboxed …/md HTML the Files preview uses. It follows your system light/dark setting, since under the sandbox CSP it can't ask the app which theme is on |
.json |
indented in a new tab (Chrome and Safari otherwise show one long line) |
.csv .tsv |
a table in a new tab, with a sticky header that scrolls inside its own box |
source, config, logs, and .txt — 46 extensions |
the app's own Files view (/files?path=), where CodeMirror highlights it, the tree is right there, and it can be edited |
| everything else — images, PDF, SVG, HTML, video | raw bytes in a new tab, which the browser renders better than an editor would |
Highlighting in the Files view covers the JS/TS family, JSON and Markdown (the modes
cmEditor.ts bundles); other languages open as plain text.
This set is deliberately asymmetric with the set the server serves as viewable text —
.md goes to the rendered viewer rather than the Files view, .txt does the opposite, and
dotfiles are server-only. The 45 extensions both sides agree on live in
common/sourceExtensions.ts, each side adds its own extras, and
test/common/sourceExtensions.spec.ts pins the asymmetry so it isn't "fixed" into symmetry.
Changing this? The routing table is
ROUTE_BY_EXTENSION/IN_APP_EXTENSIONSinsrc/composables/terminalFilePathLinkProvider.ts. Update this section, thedocs/guide/{en,ja}/features.mdrow, and the link table indocs/terminal-notes.mdtogether — all three went stale once already (#834).
Needs Node ≥ 22.9, plus these CLIs on your PATH:
| Tool | What it gives you | Install | |
|---|---|---|---|
| Required | claude |
every Claude session — this app is a cockpit for it | npm i -g @anthropic-ai/claude-code, then run claude once to log in |
| Required | git |
worktree isolation, each cell's branch / unsaved-dot / diff readout, the PR footer | brew install git · sudo apt install git · sudo dnf install git · Windows: git-scm.com |
| Required | gh |
the cross-repo PRs & Issues view and one-click PR creation — it uses your gh login, so no token is stored |
cli.github.com, then gh auth login |
| Recommended | tmux |
session persistence — terminals survive a server restart | brew install tmux · sudo apt install tmux · sudo dnf install tmux · no native Windows build (falls back to plain PTYs) |
| Optional | codex |
Codex sessions in a cell, alongside Claude | npm i -g @openai/codex |
| Optional | docker |
the experimental Docker sandbox | docs.docker.com |
| Optional | ffmpeg |
video rendering from the mulmo-script panel (its plugin ships enabled) | brew install ffmpeg · sudo apt install ffmpeg · sudo dnf install ffmpeg |
| Optional | ollama |
claude-ollama — Claude Code against a fully local model |
ollama.com/download |
The server starts without any of the non-required rows; you just lose that row's feature,
and the header/panel for it says so. git and gh are marked required because losing them
costs whole views rather than one button. npx mulmoterminal init (below) reports which of
these it can find.
npx mulmoterminal # start on http://localhost:34567 and open the browser
# or install globally:
npm install -g mulmoterminal
mulmoterminalFirst-run setup (optional). npx mulmoterminal init checks your environment (Node ≥ 22.9
and every CLI in the table above), seeds the launcher's directory
presets from the projects in your Claude Code history, and writes ~/.mulmoterminal/config.json.
It's idempotent — re-run it any time to refresh the presets; it overwrites the managed parts
and keeps your other settings. When claude is installed it can hand off to the
/mulmoterminal-config skill for interactive tweaks.
Google account (optional). Link a Google account to enable the chat's google tool and the
phone's google.calendar.* commands: read/create events on any calendar (not just your primary),
list the calendars you've subscribed to, and read the colour palettes. Sign in from
Settings → Google account, or run npx mulmoterminal google login — the CLI is the fallback
for when you're driving MulmoTerminal from another machine, since consent finishes on a loopback
listener and needs a browser on the host. Either way it needs a Desktop OAuth client JSON saved
as ~/.secrets/client_secret_*.json; the refresh token lands in ~/.config/mulmo/google-token.json
and is shared with MulmoClaude, so one link per machine covers both apps.
Local models (optional). The package also ships claude-ollama — a one-command launcher that
runs Claude Code fully locally against an Ollama model (no cloud, no API
key). It starts a large-context Ollama server and launches claude with a minimal system prompt so
small models aren't drowned:
ollama pull qwen3:4b
npx -p mulmoterminal claude-ollama qwen3:4b # or, if installed globally: claude-ollama qwen3:4bSee Local models with claude-ollama for the details and model notes.
Already linked before the calendar-list / colour features? They need a read scope your existing link doesn't have, so
listCalendars(and, in practice,colors) fail with an insufficient-scope 403 until you re-authorize: Settings → Google account → Unlink, then sign in again (or re-rungoogle login). Reading/creating events on your primary calendar keeps working without re-linking.
A global install isn't auto-updated, so on startup MulmoTerminal checks npm and
prints a one-line notice when a newer version is available — and the web toolbar shows a
clickable update badge with the exact command for your install (npm i -g mulmoterminal,
or git pull for a clone). Disable with MULMOTERMINAL_NO_UPDATE_CHECK=1 (or NO_UPDATE_NOTIFIER=1).
Options: --cwd <dir> (working directory — relative paths allowed; defaults to the
directory you run the command from), --port <n> (default 34567), --no-open,
--version, --help.
npx mulmoterminal --cwd ./my-project # work in a specific directoryThe published package ships the server (run via tsx) plus the pre-built web UI;
npx mulmoterminal checks for the claude CLI, picks a free port, starts the
server, and opens the browser. For local development from a clone, see
Running.
Won't start with ERR_MODULE_NOT_FOUND? If a first npx run was interrupted, a half-unpacked ~/.npm/_npx/<hash> cache can remain and a later run fails at startup — a corrupted npx cache, not a bug in the published package.
The launcher detects it and prints the exact, OS-appropriate removal command; run that, then npx mulmoterminal@latest again.
- Architecture
- Why a PTY?
- Agents: Claude & Codex
- Session persistence (tmux)
- Docker sandbox (experimental, single view)
- Tech stack
- Configuration
- Running
- Scripts (Run menu)
- Skills (Skill menu)
- Files view (browse & edit)
- Git worktrees & pull requests
- Cost & token usage
- Wiki, Collections & the GUI panel
- More features
- Server API specification
- Session model
- Session lifecycle
- Claude hook injection
- Session discovery & titles
- Project structure
- Testing
┌──────────────────────────────────────┐ ┌─────────────────────────────────────────────┐
│ Browser (Vue 3 + xterm.js) │ │ Server (Express + Node) │
│ │ │ │
│ Sidebar.vue ──subscribe("sessions")──┼──SIO───►│ socket.io /ws/pubsub ── publish ──┐ │
│ ▲ refetch on any push │ │ │ │
│ └──── GET /api/sessions ─────────┼──HTTP──►│ Express /api/sessions │ │
│ │ │ /api/hook ◄──curl── hooks │ │
│ Terminal.vue ── ws JSON msgs ────────┼──WS────►│ ws /ws ──► node-pty ─► `claude`──hooks┘
│ (input / resize / output) │ │ (one PTY per session) │
└──────────────────────────────────────┘ └─────────────────────────────────────────────┘
- Terminal I/O flows over a raw WebSocket (
/ws), one PTY per session. - Session list is fetched over HTTP (
/api/sessions). - Live activity is pushed over a Socket.IO pub/sub channel (
/ws/pubsub); the server learns of activity from Claude hooks that POST to/api/hook. - Other terminals run on their own raw WebSockets: Codex sessions on
/ws/codex, persistent launch commands on/ws/launch, and one-off script commands (yarn dev, tests, …) on/ws/run. Only Claude/Codex are agent sessions with hooks; see Agents: Claude & Codex and Scripts (Run menu). - In dev (
yarn dev) the Vite dev server runs on its own port (CLIENT_PORT, default6856) and proxies/ws(a prefix covering/ws/codex,/ws/launch, and/ws/run),/ws/pubsub,/api, and/artifactsto the backend (PORT, default34567) — so you open the Vite port (e.g.http://localhost:6856). In production the backend serves the built client fromdist/onPORT, and you open that.
Claude Code's interactive mode renders its UI with Ink
(a React-based TUI framework), which requires a real TTY to be attached. A
plain child_process.spawn() provides no TTY, so interactive Claude won't start
(it stays silent). node-pty allocates a
real pseudo-terminal at the OS level, so from Claude's point of view it's
running in an ordinary terminal — full TUI rendering, cursor movement, colors,
and tool-approval prompts all work. We don't use -p/headless mode or the Agent
SDK; we drive the real interactive CLI and relay its TTY over the WebSocket.
macOS note: node-pty's bundled
spawn-helperbinary ships without the execute bit (mode 644), which causes aposix_spawnp failederror. Thepostinstallscript (server/fix-pty-perms.js) fixes it to 755 automatically.
MulmoTerminal drives interactive coding-agent CLIs, not just Claude. An
AgentAdapter seam abstracts the per-agent bits (which binary to spawn, how it resumes)
so the PTY, grid, persistence, and GUI-panel plumbing stay shared. Two adapters ship
today — Claude Code (the default) and Codex.
- Claude — spawned as
claude(override withCLAUDE_BIN). The server passes--session-id <uuid>, so it knows the live session's id even before its transcript file exists, and injects activity hooks + the GUI MCP per spawn (see Claude hook injection). - Codex — spawned as
codex(override withCODEX_BIN;CODEX_MODELsets--model). Codex runs on its own WebSocket (/ws/codex) and its sessions appear in the sidebar next to Claude's. Because Codex only mints its rollout id after the first turn, the server watches~/.codex/sessions/**/rollout-*.jsonl(home overridable viaCODEX_HOME) and maps the new rollout to the session — attributed only when it's unambiguous, never by "newest wins". Resume reattaches a live PTY, adopts a surviving tmux session, or cold-resumes the rollout id.

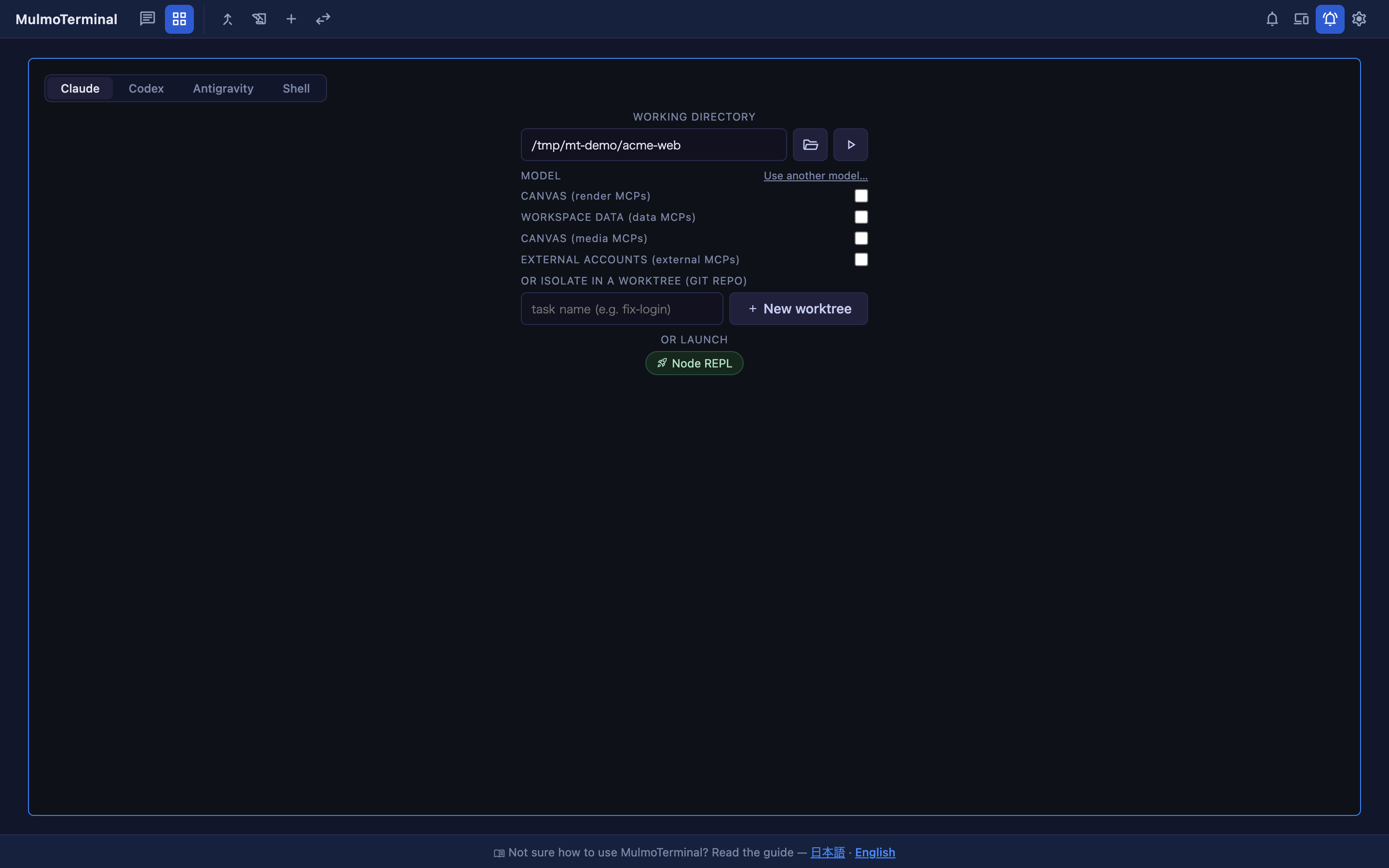

Choosing an agent. The single view has a New Codex session button; each grid cell's launch form and the Collections browser carry a Claude / Codex toggle (your choice is remembered).
Other models.
Claude Code can run against any Anthropic-compatible backend (OpenRouter, Moonshot, a
LiteLLM gateway). Backends are listed in ~/.mulmoterminal/config.json under providers,
and their keys are read from the server's environment — never from a file the app
serves. A directory sets its default in .mulmoterminal.json (provider / model), and
each grid cell's launch form has a MODEL select that overrides it for one session,
listing ~27 curated models with the measured pass rate of a real tool-using task beside
each. A provider whose token can't be resolved refuses to start rather than falling
back to Anthropic, and providers can't be combined with the Docker sandbox. Full walkthrough — setup, the measured model list, adding your own models, troubleshooting:
Using another model via OpenRouter.
Skills for Codex. Codex has no /<slug> slash commands, so on session setup
MulmoTerminal mirrors the workspace's .claude/skills into ~/.codex/skills (each
mirrored directory carries a .mt-mirror marker so a re-sync overwrites what MulmoTerminal
owns and never clobbers Codex's own skills), and rewrites a collection's /<slug> … seed
into a plain Use the "<slug>" skill. instruction. The same skills Claude uses then show
up for Codex, loaded by description.
If tmux is installed, MulmoTerminal runs each Claude session and launcher inside
a tmux session, so a server crash or restart doesn't kill your terminals — the
processes keep running and reattach when the server comes back (like screen/tmux).
A long build, a dev server, or a mid-turn Claude session all survive node --watch
reloads and crashes. It uses its own tmux server (-L mulmoterminal) and config, so
it never touches your personal tmux sessions or keybindings.
No tmux? No problem — terminals fall back to plain (non-persistent) PTYs, exactly as before. An explicit close (a cell's ✕) ends the tmux session; a machine reboot does not survive (tmux itself is gone). Command-cell scripts are ephemeral and not persisted.
Installing tmux (optional):
brew install tmux # macOS (Homebrew)
sudo apt install tmux # Debian / Ubuntu
sudo dnf install tmux # FedoraOn Windows there's no native tmux, so sessions use the non-persistent fallback — run the
server under WSL if you want persistence. Nothing else is required: MulmoTerminal
detects tmux on PATH at startup and uses it automatically when present.
Set MULMOTERMINAL_SANDBOX=1 (and have Docker running) to run the single-view
Claude session inside a container instead of on the host, while Claude still reaches the
app's GUI MCP + activity hooks over host.docker.internal. The mulmoterminal-sandbox
image is built automatically on first launch from the shipped Dockerfile.sandbox
(~1 min, once; rebuilt only when that file changes). Override the name with
MULMOTERMINAL_SANDBOX_IMAGE. If the image can't be built (e.g. Docker down), the session
falls back to the host spawn — no cryptic failure.
This contains Claude — it can't reach the host filesystem outside the mounts, host
processes, or arbitrary host ports. It is not full isolation: the workspace and
~/.claude are bind-mounted read-write by design (so Claude edits your project,
and transcripts interoperate with host sessions), so those specific paths stay mutable
from inside. The sandbox is non-persistent (the container is
--rm, tied to the session), opt-in and single-view only — the grid keeps its host +
tmux path, and with the flag unset (or Docker unavailable) everything runs on the host
exactly as before. macOS only for now — on Linux (bind-mount uid ownership) and
Windows (host paths aren't valid Linux container paths) it falls back to the host spawn;
both are follow-ups. Adding arbitrary user MCP servers to the sandbox is in progress
(see #202).
Authentication (macOS). Claude's live login token lives in the macOS Keychain,
which the container can't read (mounting ~/.claude alone isn't enough — its
.credentials.json is often absent or stale). On each sandbox spawn MulmoTerminal exports
the current credential to a per-session ~/.mulmoterminal/sandbox/creds-<id>.json
(mode 0600, removed when the session ends) and mounts it read-only over the
container's ~/.claude/.credentials.json; your host ~/.claude is never modified. If
you've never logged in on the host, run claude once first — otherwise the server logs a
warning and the container shows "Not logged in".
Host credentials (opt-in). By default the sandbox has no host credentials. To let the
sandboxed Claude use gh/git, set SANDBOX_MOUNT_CONFIGS=gh,gitconfig — a fixed
allowlist (you pick names, never arbitrary paths): gh mounts ~/.config/gh read-only
and passes a GH_TOKEN (from gh auth token, since macOS keeps it in the Keychain), and
gitconfig mounts ~/.gitconfig read-only. Set SANDBOX_SSH_AGENT_FORWARD=1 to
forward the SSH agent socket (the keys never enter the container). Both are read only when
building the sandbox spawn, so they have no effect unless MULMOTERMINAL_SANDBOX is on.
| Layer | Technology |
|---|---|
| Frontend | Vue 3 (<script setup> + TypeScript), Vue Router, Vite, xterm.js (@xterm/*), CodeMirror 6, socket.io-client |
| Backend | Node (ESM, TypeScript run via tsx), Express 5, ws (terminal WebSocket), node-pty, socket.io, @modelcontextprotocol/sdk (in-process GUI MCP) |
| Plugins | GUI-protocol Vue plugins (@mulmoclaude/*, @mulmochat-plugin/*): markdown, form, image, chart, HTML, collection, accounting, mulmoscript (MulmoCast video/slides), google |
| Tests | Vitest + @vue/test-utils + jsdom |
Requires Node ≥ 22.9 (uses node --env-file-if-exists) and the claude CLI on PATH.
The server is configured entirely through environment variables, optionally
loaded from a .env file. npx mulmoterminal reads the .env in the
directory you run it from; the npm scripts read the one in the repo root. The
.env is optional — every variable below has a default, so the server runs
without one.
A variable already set in your shell wins over the same name in .env, so
adding a file never overrides what you exported. The server's environment is
inherited by every terminal it starts, so anything in .env is also visible to
the claude / codex sessions themselves.
| Variable | Default | Description |
|---|---|---|
PORT |
34567 |
Backend HTTP/WebSocket port (prod: the URL you open). |
CLIENT_PORT |
6856 |
Vite dev-server port (dev only: the URL you open with yarn dev). |
CLAUDE_BIN |
claude |
The Claude Code binary to spawn. On Windows a bare name is resolved on PATH before it reaches the PTY layer (which matches file names exactly): to the .exe when there is one, otherwise to the .cmd shim an npm-global install leaves, run through cmd.exe. |
CLAUDE_CWD |
current dir | Working directory each claude PTY runs in; determines which project's sessions the sidebar lists. Via npx mulmoterminal it defaults to the directory you ran the command from (override with --cwd <dir>, relative allowed); when the server is run directly it falls back to ~/mulmoclaude. A value read from .env must be an absolute path (~ is not expanded). |
CLAUDE_PERMISSION_MODE |
auto |
Permission mode passed to each claude spawn. |
MT_TITLE_MODEL |
haiku |
Model used for the cell header's AI title (a cheap/fast model summarizing the recent turns). Accepts a --model alias or a full model id. |
CODEX_BIN |
codex |
The Codex CLI binary to spawn. |
CODEX_MODEL |
codex default | Model passed to Codex as --model (unset = Codex's own default). |
CODEX_HOME |
~/.codex |
Codex home — where its session rollouts and MulmoTerminal-mirrored skills live. |
MULMOTERMINAL_HOME |
~/.mulmoterminal |
Root for managed git worktrees. |
WAIT_REAP_GRACE_MS |
1800000 |
How long a waiting background session is kept before it's auto-reaped (0 or negative = never). |
The Docker-sandbox variables (MULMOTERMINAL_SANDBOX, MULMOTERMINAL_SANDBOX_IMAGE,
SANDBOX_MOUNT_CONFIGS, SANDBOX_SSH_AGENT_FORWARD) and the update-check opt-outs
(MULMOTERMINAL_NO_UPDATE_CHECK, NO_UPDATE_NOTIFIER) are covered in
Docker sandbox and Install & run.
Example .env (gitignored):
CLAUDE_CWD=/Users/you/my-project
The Settings modal (⚙) persists per-user UI choices to ~/.mulmoterminal/config.json
(read/written via GET/POST /api/config):
Open it from the ⚙ button in the toolbar. Pick a theme, set the terminal font size, set a custom attention sound, list the repos the cross-repo PRs & Issues view should aggregate, add launch commands for grid cells, and register your own MCP servers — no need to hand-edit the config file. Note that theme and font size are stored per browser (they're display preferences, so a phone and a desktop keep their own); the rest live in ~/.mulmoterminal/config.json and are shared by every client.
| Field | Meaning |
|---|---|
cwdPresets |
Quick-pick directories offered when launching a terminal. |
soundFile |
Absolute path to a custom attention sound, the fallback for every kind. Empty/unset uses the built-in synthesized chime. |
soundKinds |
Which moments beep — see Notification sounds. Defaults to ["finished","waiting"]; the other kinds are opt-in. |
sounds |
Per-kind sound: { "waiting": "preset:coin" }. A preset:<id> reference or an absolute path; a kind with no entry falls back to soundFile. |
prRepos |
owner/repo entries whose open PRs/issues the cross-repo PRs & Issues view aggregates (via your gh login). |
launchers |
{ label, command } entries offered in a grid cell's launcher besides Claude — a plain shell, codex, any interactive command. |
quickCommands |
{ label, text, agents? } phrases the phone offers as chips on a session's terminal view. Tapping one puts text in the input box; it is not sent until you press send. agents ("claude" / "codex" / "shell") scopes a chip to session kinds — omit it to offer the chip everywhere. Empty by default. |
userMcpServers |
{ id, url } HTTP MCP servers merged into the single-view Claude session's --mcp-config (a localhost URL is reached over host.docker.internal in the Docker sandbox). Takes effect on the next session. |
buttons |
Header action buttons — see Header buttons. Omit to keep the defaults; set to replace them. |
chips |
Header info chips. Omit to keep the default set; [] hides all built-ins. |
pushEnabled |
true to send a Web Push to your registered devices. Off by default; only sends while the RemoteHost channel is connected (see below). The master switch — pushKinds picks which moments. |
pushKinds |
Which moments push: "finished" (a turn ended, ✅) and/or "waiting" (the agent stopped to ask — a permission prompt or a question, ❓, once per prompt). Omit to keep both; [] for none. A kind added in a later version stays off until you tick it. |
worklogEnabled |
true to run the built-in dev worklog batch (see below). Off by default (each run spawns an LLM session, so it costs tokens). |
worklogIntervalHours |
Worklog cadence in hours (default 6, clamped to 1–168). |
terminalSubmit |
Which bytes Claude reads as submit vs newline: "cr" (default — Enter submits, Shift+Enter makes a newline) or "esc-cr" (for a Claude Code rebound the other way). Applies to the keyboard and the phone remote-view submit, for Claude sessions only (shell/codex keep plain Enter). See the Configuration guide. |
prWorkdirFooter |
Ends the body of a PR ⧉ Open PR creates with work in <clone> — the directory name of the clone the work happened in, so a PR says which of several side-by-side checkouts produced it. On by default; set false to opt out — read from the file per PR, so no restart is needed (there is no Settings control for it). Only applied to PRs this app creates (pressing the button again on an existing PR never re-appends). |
fontFamily |
The terminal font every session renders in — a CSS font-family stack, e.g. "'Cica', 'MS Gothic', monospace". No Settings UI: edit the file, then restart (this config is read once at startup). Unset uses the built-in stack (JetBrains Mono / Fira Code / Menlo / Consolas, then CJK faces for Japanese, Korean and Chinese). Unlike the per-browser font size, this is one value for the whole host — it names fonts, and which fonts exist is a property of the machine. A directory can override it. See the Configuration guide. |
Each terminal header shows configurable action buttons. Omitting buttons (globally or per-dir)
keeps the built-in starter set: a file-path picker (📎), an OS file-manager reveal (📂), an in-app
file explorer (📁), a new terminal here (🖥), this branch's PR (🔗, git repos, only when a PR exists),
and open-on-GitHub (🌐, git repos). Setting buttons (at either level) replaces the whole default
set with your list (it is not merged on top), so listing your own — even a shorter one — is how
you drop, reorder, or swap them.
A button has an id, label, and a run of "shell" (run a command), "input" (send text to the
agent), or "open". An open button targets one of url / reveal (OS file manager) / files
(in-app explorer) / view (a built-in overlay) / terminal (a dir → a new cell running $SHELL,
opened next to the current one) / pr: true (open the current branch's PR — the button is hidden when
there's no open PR) / pickFile: true (OS file dialog → insert the path).
${dir}, ${branch}, ${repo}, … substitute live context, and when (e.g. "isGitRepo") gates
visibility. The /mulmoterminal-config skill writes a valid config interactively; per-dir buttons
merge over the global ones by id.
Six moments can beep, each with its own sound and its own on/off switch. Running many agents at once is what turns notifications into noise, so only the first two are on by default — the rest are opt-in from Settings.
| Kind | When | Default |
|---|---|---|
finished |
the turn ended and the output is unread | on |
waiting |
it stopped to ask — a permission prompt or a question | on |
command-done |
a Run cell's command exited 0 | off |
command-failed |
a Run cell's command exited non-zero, or never started | off |
session-exited |
a session's terminal ended — including when you close the cell yourself | off |
pr-ci-failed |
a directory's PR went red. Only seen while the roster is on screen, since that is what polls the phase | off |
A Run cell is the one-shot cell a script.json entry or a run:"shell" header button
opens — not a shell launcher cell. A launcher runs an interactive shell that stays alive, so
nothing marks where one command inside it ended; only the one-shot cell reports an exit code.
finished and waiting reach the phone too (pushKinds); the other four are seen only in
the browser — a Run PTY never enters the session registry, and a PR phase is something the
page polls — so Web Push cannot raise them.
What each one plays. The default chime is generated with the Web Audio API — no audio file is bundled, so the npm package stays light and has no media-licensing concerns. Beyond it there are two options:
- Presets — seven sounds hosted in the ownplate
repo (MIT), referenced as
preset:<id>:chimecoincheepdoorgongmagicmeow. The first play downloads one into~/.mulmoterminal/sounds/; every later play reads that file, so a preset keeps working offline. A failed download is not remembered as one — you get the chime that time and the next play retries. That holds on both sides: the server caches no failure, and it answers 503 (not 404) for a preset it could not fetch, because the browser remembers a 404 for the life of the page and only retries a 5xx. - Your own file — an absolute path, per kind in
soundsor as the all-kindsoundFile.
Resolution per kind, nearest first: the session directory's sounds[kind], its sound, your
sounds[kind], your soundFile, then the chime. The server streams whichever applies at
GET /api/sound?kind= / GET /api/dir-sound?cwd=&kind=, and the client falls back to the
chime if it's missing or not audio.
Web Push on task finish. Enable pushEnabled in Settings to have the server send a
push (title = the project dir, body = the last prompt) to your registered devices each
time a background task finishes — the same signal as the attention chime, but for the
panes you're not watching. Delivery is handled by the separate mulmoserver sendPush
Cloud Function; MulmoTerminal only makes the call, and only while the RemoteHost
channel is connected (its Google sign-in supplies the notification auth). With RemoteHost
disconnected, or with no device registered, the toggle is a no-op.
Dev worklog (cross-clone). Set worklogEnabled: true in
~/.mulmoterminal/config.json (and restart — the scheduler reads its tasks at boot)
to register a built-in scheduled task. Every worklogIntervalHours (default 6) it spawns
a Claude session that reviews the work you did across all your saved working dirs
(cwdPresets) since it last ran, and writes it up as a short manager-style report.
Multiple clones/worktrees of the same repo (e.g. myapp, myapp2) are merged into one
per-repository section, each covering what problem was addressed, what got solved, what's
still in progress, and — mined from the transcripts — decisions that were only discussed
and not built. The window is since the last run (tracked in
config/scheduler/worklog-state.json), not a fixed 6 h, so a missed/slept run doesn't drop
work. It reads and reconciles progress against vision.md / milestones.md (creating
empty ones if absent) so a long-running goal isn't forgotten.
Output lands in the wiki: one weekly page per ISO week
(data/wiki/pages/dev-log-YYYY-www.md — filenames are lowercase, or the wiki can't open
them), each tagged worklog. To browse them, open the 作業ログ 一覧 hub page
(worklog), which links every week, or click the #worklog tag in the wiki index.
Off by default because each run costs tokens — watch the cost readout and tune the cadence.
Run it on a single "hub" instance; running it in several instances sharing one workspace
double-fires it. The batch treats everything it reads (transcripts, git, wiki) as untrusted
data and only writes the worklog / hub / vision / milestones pages.
Drop a .mulmoterminal.json in a project directory to give terminals opened in
that directory their own look and sound. It applies per terminal (per grid cell) —
the rest of the app keeps your chosen theme — and a directory's theme overrides your
manual theme pick for that terminal only. Every field is optional; a missing or
malformed file is ignored.
As cells pile up it gets hard to tell which project is which. Give each repo a name badge and its own colors in .mulmoterminal.json and they're unmistakable — headerColor/badgeColor tint the frame, while colors reaches all the way into the terminal's own background and text. (The example above dresses four repos in Mondrian / van Gogh / Picasso / Matisse palettes.)
| Field | Meaning |
|---|---|
name |
Label shown as a badge in the terminal/cell header. |
badgeColor |
Badge background color (#rrggbb); text auto-contrasts. |
headerColor |
Header background color (#rrggbb) — the grid cell's header row and the terminal's own header row (grid row 2 + single view). While a terminal is working/blocked the status tint still shows; the custom color applies when idle. |
headerTextColor |
Header text color (#rrggbb) — the dir path, title, and prompt. |
cellColor |
Cell body background color (#rrggbb) — the frame around the terminal. |
cellBorderColor |
Cell border color (#rrggbb). The status frame (working/blocked) still overrides it while active. |
dotColor |
Idle status-dot color (#rrggbb). The working/waiting colors are unchanged so the activity signal stays intact. |
buttonColor |
Header icon button color (#rrggbb) — expand / close / attach / folder / etc., across both header rows. |
theme |
xterm palette for terminals in this directory (one of the built-in theme ids). |
colors |
Per-key xterm palette overrides applied on top of theme (or the app theme when theme is unset). Keys are xterm ITheme names (background, foreground, cursor, selectionBackground, the 16 ANSI colors, …); values are hex (#rgb / #rrggbb / #rrggbbaa). Unknown keys / bad values are dropped. |
fontSize |
Terminal font size in px for this directory (8–32), overriding the Settings value. A size outside the range is clamped; a non-number is ignored. Changing it re-fits the terminal, so the PTY learns the new width — unlike browser zoom, which leaves the two disagreeing. |
fontFamily |
CSS font-family stack for this directory's terminals, overriding the global fontFamily. Use the names as your OS lists them ("'Cica', 'MS Gothic', monospace"). An unusable stack is ignored whole rather than half-applied; monospace is appended if you name no generic family. Prefer fonts whose fullwidth glyphs are exactly twice the Latin width, or box-drawing frames tear. |
sound |
Attention sound for this directory's sessions, a path relative to the directory (served at GET /api/dir-sound). The fallback for every kind. |
sounds |
Per-kind override of sound: { "command-failed": "preset:gong" }. Each value is a preset:<id> or a directory-relative path, under the same confinement. |
addDirs |
Extra directories this project's Claude sessions may read and edit — the terminal-side equivalent of opening several folders in one VS Code workspace, via Claude Code's --add-dir. Relative entries resolve against this file's directory ("../shared-lib"), a path that doesn't exist is dropped, max 16. In the Docker sandbox each one is bind-mounted too, so the grant is real inside the container — which widens the sandbox on purpose. Claude only: codex has no equivalent flag and ignores the key. |
Security. sound and every sounds entry are directory-relative paths only — absolute
paths and any ../ that escapes the directory are rejected, and the path is never taken from the
HTTP request, so an opened project can't point the player at arbitrary files.
Changes take effect when the terminal is next opened (no live file watch).
yarn install # postinstall fixes node-pty prebuilt binary perms
yarn dev # backend (:34567) + Vite UI (:6856), concurrently — open http://localhost:6856
# or individually:
yarn dev:server # backend only (node --import tsx --env-file-if-exists=.env server/index.ts)
yarn dev:client # Vite dev server only
yarn build # type-check (vue-tsc) + vite build -> dist/
yarn typecheck:server # type-check the server (tsconfig.server.json)
yarn typecheck:test # type-check the specs (tsconfig.test*.json)
yarn server # run backend; serves dist/ + the APIs on :34567
yarn test # vitest runThe backend is TypeScript run directly via tsx (no build step); server/ is
type-checked separately through tsconfig.server.json (strict), kept out of
the main build so the two type-check independently.
Specs sit outside both of those projects, and vitest strips types rather than
checking them — so yarn typecheck:test is what keeps them honest. It mirrors
the same split: tsconfig.test.json (client specs, DOM + .vue) and
tsconfig.test-server.json (server specs, node). CI runs it alongside the
other two.
In dev, open the Vite URL; its proxy forwards /ws, /ws/pubsub, and /api to
:34567. In production, run yarn build then yarn server and open
http://localhost:34567.
An empty grid cell's launcher sets the Working directory by typing, by a preset
chip, or with the 📁 folder button (a native OS folder dialog). It also offers a
run a script row
that launches project scripts (a dev server, tests, a build, …) in that cell, in
the directory the cell is pointed at — so a whole workflow lives in one window
alongside the Claude sessions. Scripts are per-directory: the cell reads the
script.json of whatever directory you select, so different cells can offer
different projects' scripts.
The same launcher also has an or launch row for your configured launch commands
— a plain interactive shell, codex, any command — set in Settings (⚙) → Launch
commands as { label, command } (e.g. Shell → $SHELL, Codex → codex). Unlike
a one-shot script, a launcher runs as a persistent terminal in the cell's directory:
it survives grid page switches and reconnects, and its dot shows running vs. exited (it
has no Claude hooks, so no blocked/done states).
Every running terminal's header also has a ▶ Run ▾ dropdown (next to the
connection status), in both the single view and each grid cell — but only when the
open project has scripts (no script.json, no button). It lists the open
project's script.json — the directory that terminal runs in — and launches the
picked script in a spare grid cell (reusing an open launcher, else a new one),
switching to the grid from the single view so you can watch it. So you can start a
dev server or tests for the project you're working in without disturbing the
session that's running.
The list is populated from a script.json at the chosen directory's root. It's
optional; a directory without one simply shows no scripts.
// <dir>/script.json
{
"scripts": [
{ "label": "Dev server", "command": "yarn dev" },
{ "label": "Unit tests", "command": "yarn test" },
{ "label": "Build", "command": "yarn build" },
// optional per-script working dir (relative to this file, or absolute):
{ "label": "Sub server", "command": "yarn serve", "cwd": "packages/server" }
]
}| Field | Required | Meaning |
|---|---|---|
label |
yes | What the launcher shows. |
command |
yes | Shell command, run via the login shell ($SHELL -lc "<command>"). |
cwd |
no | Working dir, relative to script.json or absolute. Defaults to the cell's directory. |
A command terminal is not a Claude session: it has no session id, no hooks, no
transcript, and isn't persisted — it's ephemeral, so a page reload drops it and
closing the cell (or reloading) kills the process. When the command exits, the cell
offers a ↻ re-run. The browser only ever sends the script's index + its
directory; the server reads that directory's script.json and resolves the
command, so the file is the allowlist of what can run.
Each command cell also has a ✦ Summarize button: click it to send the cell's
captured output to claude -p (headless) and get a short Errors / Warnings /
likely cause / suggested fix note in a panel — handy when a build or install
buries the one failing line in thousands. It's manual (never auto-runs) and analyzes
the last 32 KB of output. See
POST /api/command/summarize.
Next to the ▶ Run ▾ dropdown, every running terminal's header has a ⚡ Skill ▾
dropdown — in both the single view and each grid cell, and only when the open
project has skills (nothing discovered, no button). It lists the
Claude skills discoverable for
that terminal's directory — both project scope (<dir>/.claude/skills) and user
scope (~/.claude/skills), the same skills Claude sees — and, on pick, runs the
skill in that session: it types the skill's invocation into the terminal and submits
it (for Claude, its /<slug> command; for Codex, which has no slash command, a plain
Use the "<slug>" skill. instruction). Unlike ▶ Run — which launches a
script.json shell command in a spare cell — a skill runs in the session you
picked it from, continuing that conversation.
Ordering: working-dir (project) skills come first, then user-scope ones, alphabetical within each group; a project skill of the same slug shadows the user one.
Filtering: add a skills array to the directory's
.mulmoterminal.json to narrow the menu —
an allowlist of slugs that also sets the order (only those show, in that order). Omit
it to show everything.
// <dir>/.mulmoterminal.json
{ "skills": ["review-diff", "commit-msg"] }Each menu item shows the skill's id, with its SKILL.md description as the hover
tooltip. A directory (or workspace) without any .claude/skills simply shows no
button. Skills are discovered read-only; the menu never creates or edits them.
A terminal header can carry a 📁 Files button — add it as a header button
("open": { "files": "${dir}" }) — that opens a full-screen file explorer
rooted at that terminal's project directory — so after Claude says "wrote foo.md"
you can jump straight there to read or edit it. The left pane is a lazy-loaded directory
tree; clicking a file opens it in a CodeMirror editor (Markdown / JS-TS / JSON
highlighting, everything else as plain text). Markdown files get a Preview toggle
that renders via the server's sandboxed …/md HTML. Save (or ⌘/Ctrl-S) writes back.
Beside an enlarged terminal, not only full-screen. Expand a grid cell (⤢) and its header gains a folder toggle that splits the enlarged area in two: terminal on the left, the same explorer + editor on the right, rooted at that cell's directory. Drag the divider (or focus it and use ←/→, Home, End) to resize — the terminal keeps a floor, so a squeeze shrinks the pane rather than reflowing xterm into garbage. It works in both zoomed layouts (cockpit roster and thumbnail filmstrip), the pane re-roots as you walk the zoom between terminals, and whether it's open plus how wide it is are remembered per browser.
All reads and writes go through GET/PUT /api/files/browse/*?cwd=&path=, and every
path is contained within the project root (server-side) — ../absolute escapes
are rejected for reads and writes alike, so editing can't reach outside the directory
the terminal is pointed at. A save sends the version the file had when it was opened, so
it is refused (409) rather than silently overwriting an agent that edited the same
file meanwhile; the editor then offers to reload or to overwrite deliberately.
Opening a file, and replacing one, keep a copy under ~/.mulmoterminal/backups/ — three
generations per file, outside the project so they never reach git status or the agent's
view of its own repo. Re-opening unchanged content doesn't rotate one in, and a backup that
can't be written never blocks the read or the save it was taken for.
When a terminal's directory is a git repo, its header shows a branch chip
(⎇ <branch> with dirty / ahead / behind counts), fed by GET /api/git-status (polled
while the view is visible). A GitHub menu links straight to the repo, its issues, and
its pull requests.
Worktree isolation. A grid cell's launch form offers ＋ New worktree: name a task
and the cell launches its agent inside a fresh
git worktree on a new agent/<slug> branch — a
separate working tree that shares the repo's .git, so several agents can work the same
repo without colliding. Worktrees live under ~/.mulmoterminal/worktrees/ (override with
MULMOTERMINAL_HOME), and existing ones are listed for reuse.
Every empty grid cell shows this launch form: toggle Claude / Codex, type a working directory (frequent ones autocomplete from your presets), or — in a git repo — name a task under OR ISOLATE IN A WORKTREE and hit ＋ New worktree to start the agent on its own isolated branch. OR LAUNCH starts a plain shell or any launch command instead.
A worktree cell's header carries a diff badge (+<commits> ●<dirty>); click it for a
Changes vs <base> panel (file list + patch) with actions:
- ✓ Commit — hands the cell's own session a canned commit prompt.
- ⬆ Push —
git push -u origin <branch>(POST /api/worktrees/push). - ⧉ Open PR — pushes, then
gh pr create … --fill; ifghis missing or unauthed it falls back to opening the GitHub compare URL (POST /api/worktrees/pr).
Closing a worktree cell asks whether to keep the worktree or discard & remove it (a dirty worktree is never removed unless you confirm).
PRs & Issues (cross-repo). The toolbar's Pull requests button opens a full-screen
view that aggregates open PRs and issues across the repos listed in Settings →
Pull request repos (prRepos, owner/repo entries) via your server-side gh login.
PRs show a CI-rollup / review-decision / draft badge; each repo lists its latest open
issues. Rows are real links, per-repo errors don't sink the view, and the two lists load
independently. Backed by GET /api/prs and GET /api/issues.
Each grid cell's header shows two badges for its session, refreshed when a turn finishes
(from GET /api/session/:id):
Both badges, live on a real Claude session: Opus · ctx 5% (model family + how full its context window is) and ⇡427k ⇣1.8k (cumulative input / output tokens for the session). They sit in the header's first row alongside the status dot, directory, and git chip (⎇ main ●2), with what the agent is doing to the right; the icon buttons and the timeline (🕘) of tool calls are on the second row.
- Context badge — e.g.
Opus · ctx 35%: the model family plus how full its context window is (the last turn's input + cache tokens ÷ the model's window — 1M for current-gen Opus / Sonnet / Fable / Mythos, 200k otherwise). A session running on a provider model shows that model's name and its published window (Kimi K2.7 Code · ctx 12%); a model in neither list keeps the label and hides the %, since the window is never guessed. - Token badge —
⇡<in> ⇣<out>: cumulative input (fresh + cache-read + cache-creation) and output tokens for the session, k/M-formatted, with a full breakdown in the tooltip.
The Settings modal (⚙) shows an estimated $ cost — Session / Today / Month — from
GET /api/cost, using a built-in public per-model price table (cache reads billed at
0.1×, cache writes at 1.25× input). It's an estimate: real billing differs, flat-plan
(Max) usage isn't reflected, and turns on unpriced models are flagged and excluded.
A separate, full double-entry accounting book (the account_balance toolbar button →
/accounting) is provided by the bundled @mulmoclaude/accounting-plugin and stores its
books under <workspace>/data/accounting. It's a bookkeeping app — unrelated to the LLM
cost estimate above — and is also exposed to Claude as the manageAccounting GUI tool.
MulmoTerminal is also a live view over the shared workspace (CLAUDE_CWD, default
~/mulmoclaude) that agents author into — never a snapshot, so it re-reads on entry.
GUI panel. Beside the terminal, a GUI panel ("Canvas") renders the rich results of
GUI-protocol tools the agent calls — documents (presentDocument), forms (presentForm),
generated images, charts, HTML, and collection cards. Each result is drawn by its plugin's
own Vue view inside a Shadow-DOM PluginFrame (so a plugin's bundled CSS can't leak),
mirrors the active session, and replays history on re-select. Plugins reach the agent over
an in-process MCP server served per session at POST /api/mcp/:sessionId (server name
mulmoterminal-gui) — which works from the host or the Docker sandbox (over
host.docker.internal). Which plugins load is gated by plugins/plugins.json; the shipped
set includes markdown, form, image generation (needs GEMINI_API_KEY), chart, HTML,
collection, and mulmoscript (MulmoCast video/slides/PDF playback) views. You can also merge
your own HTTP MCP servers into the single-view session via Settings → userMcpServers.
Wiki. The toolbar Wiki button opens a read-only browser over <workspace>/data/wiki/
— an index (tag-filterable page catalog), rendered pages with [[wiki links]] and
backlinks, a graph view (pages ranked by references), and a lint report (orphans /
broken links / tag drift). Read-only endpoints: GET /api/wiki, /api/wiki/graph,
/api/wiki/lint.
Collections. The toolbar Collections button browses the workspace's collection
"cards" (@mulmoclaude/collection-plugin). Running a collection action fetches a seed
prompt and spawns a fresh agent session for it — the Launch with Claude / Codex toggle
decides which agent (and whether the seed auto-runs or drops in as an editable draft).
Favorited collections get their own toolbar buttons.
- Grid of parallel sessions — the ＋ Terminal / grid view runs many sessions at once, auto-sizing by count across pages. Cell borders signal state at a glance — working (pulsing blue), blocked (amber — needs a permission / answer), done (blue — finished, output unreviewed), and idle — and the toolbar shows a tally across all pages so you notice an off-screen cell that needs you.

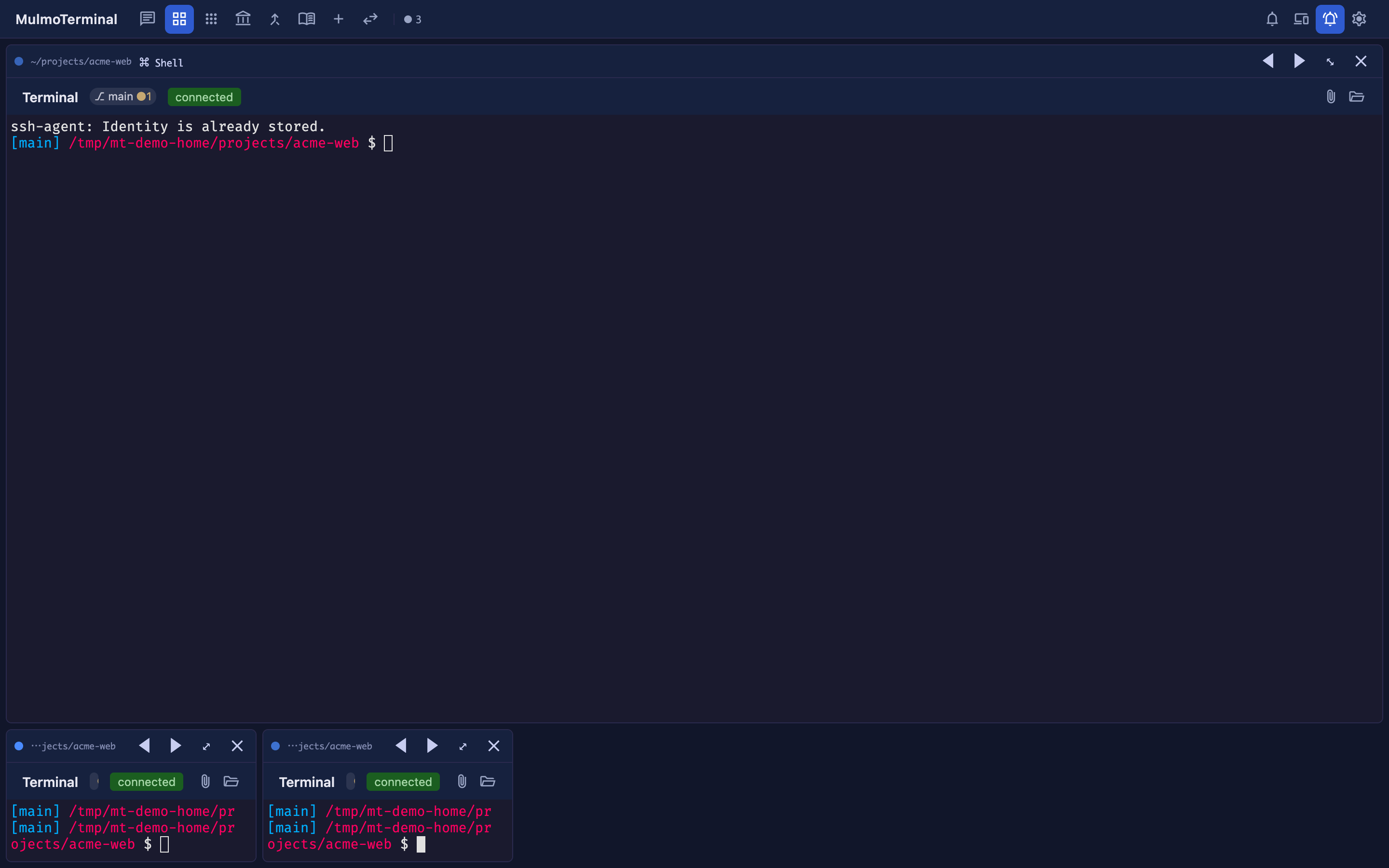

- Zoom & filmstrip — a cell's ⤢ enlarges one agent while the rest shrink to
thumbnails in a bottom filmstrip; click a thumbnail to switch, ⤡ to return to the
grid — so you can flip between "see everything" and "focus on one" in a click. While
zoomed, keys you bind walk the enlargement along the on-screen order without reaching for
the mouse — opt-in, nothing is bound by default, since any bound key is taken from the
terminal underneath. Add a
keymapto~/.mulmoterminal/config.json; see the guide for the syntax, the action list, and combinations a browser can never bind.
- Timeline (🕘) — a read-only per-session activity timeline (tools run, newest first),
from
GET /api/transcript/timeline. - Bring another cell's turn here (💬) — pick another terminal in the grid and its last completed turn is pasted into this cell's input box, so you can have Claude and Codex look at each other's work (or pull in a session running in a different repo). The excerpt comes from the agent's own log, not the screen buffer, so it carries no ANSI debris and nothing lost to scrollback. It is pasted, never sent — you read what arrived and press Enter, in the cell you were already in. A turn still running isn't available yet (Codex writes its rollout only once the turn ends).
- Tools pane — the available GUI tools plus a live tool-call history for the active session.
- Notifications (🔔) — a toolbar bell with an unread badge and a dropdown of active notifications; click a row to jump to its session.
- Voice input — dictate a prompt via on-device Whisper (
POST /api/transcribe, macOS only; the model downloads on first use). Settings picks the language you dictate in (per browser): your browser's, whisper's own per-clip detection, or a fixed one. Worth setting — speech in a language the mic is not expecting comes back translated into the one it is, so an English browser silently turned Japanese dictation into English. - Remote host — link MulmoTerminal to the companion phone client (Google sign-in) to watch and start sessions from your phone.
- Themes — four terminal palettes (midnight / nord / daylight / solarized), your pick
remembered; a project's
.mulmoterminal.jsoncan override per directory. - Editing niceties — Shift+Enter inserts a newline in the prompt, and on macOS
Option is treated as Meta so Claude's Alt-key bindings work. If your Claude Code is
rebound so Enter and Shift+Enter behave backwards, flip them with
terminalSubmit. - No accidental page zoom —
Ctrl+wheel and a trackpad pinch would rescale the whole page and drag the layout and the terminal's fit along with it, so both are ignored. Keyboard zoom (Cmd/Ctrl+/-) still works when you mean it, and a phone's finger pinch is untouched. To make terminal text bigger for real, use the font size in Settings (or a directory'sfontSize) — that re-fits the PTY instead of leaving it disagreeing.
Base URL: http://localhost:$PORT (default http://localhost:34567).
Lists the most-recent chat sessions for the current project (CLAUDE_CWD),
newest first, including freshly-created sessions that aren't yet written to disk.
Response 200 application/json
{
"cwd": "/Users/you/my-project",
"sessions": [
{
"id": "d16f43f3-ef63-4a5e-b273-debaccb3522a", // session UUID (= .jsonl basename)
"title": "Review available skills list", // see "Session discovery & titles"
"mtime": 1781471064511.22, // last-modified, ms epoch (sort key)
"working": false, // Claude is mid-turn (blue dot)
"waiting": false // needs attention (bold)
}
// ...
]
}- Sessions are read from
~/.claude/projects/<encoded CLAUDE_CWD>/*.jsonland merged with in-memory sessions started this run but not yet persisted (those havetitle: "New session"andmtime= creation time). - Sorted by
mtimedescending and capped at the 50 most recent. Files are ranked by a cheapstat-only pass; only the top 50 are read and parsed for titles, so the endpoint stays cheap regardless of how many sessions exist. 500 { "error": string }on an unexpected filesystem error. A missing project directory is not an error — it yields an emptysessionsarray.
The runnable entries from <cwd>/script.json for a cell's chosen directory
(?cwd=<dir>, falling back to CLAUDE_CWD); see
Scripts (Run menu). The resolved cwd is echoed back (the
server may fall back from a bad path), and each entry carries its index (the
position the client sends back to /ws/run).
// GET /api/scripts?cwd=/Users/me/proj
{
"cwd": "/Users/me/proj",
"scripts": [
{ "index": 0, "label": "Dev server", "command": "yarn dev" },
{ "index": 1, "label": "Sub server", "command": "yarn serve", "cwd": "packages/server" }
]
}A missing or invalid script.json is not an error — it yields an empty
scripts array.
The Claude skills discoverable for a terminal's chosen directory (?cwd=<dir>,
falling back to CLAUDE_CWD) — project scope (<cwd>/.claude/skills) plus user scope
(~/.claude/skills), deduped by slug (project shadows user), working-dir skills
first; see Skills (Skill menu). A skills allowlist in that
directory's .mulmoterminal.json narrows and reorders the result; absent → all. The
resolved cwd is echoed back. Each entry carries its slug (the skill invoked as
/<slug>) and the SKILL.md description (the menu tooltip).
// GET /api/skills?cwd=/Users/me/proj
{
"cwd": "/Users/me/proj",
"skills": [
{ "slug": "commit", "description": "Write a commit message" },
{ "slug": "review", "description": "Review the current diff" }
]
}A directory without any discoverable skills is not an error — it yields an empty
skills array.
Runs claude -p headless over a command cell's captured terminal output and
returns a short summary (Errors / Warnings / likely cause / suggested fix). Backs the
✦ Summarize button on a Run cell (see Scripts (Run menu)).
The browser sends the cell's xterm buffer as log; the server truncates it to the
last 32 KB (the tail, where errors + the exit line live), runs the CLI with the
log piped on stdin (argv — no shell), and returns its answer. Same-origin guarded.
Request application/json:
{ "log": "npm ERR! cannot find module 'foo'\n..." }Response 200 application/json:
{
"summary": "Errors: cannot find module 'foo'\nSuggested fix: run `yarn add foo`",
"truncated": false // true when the log exceeded 32 KB and only the tail was analyzed
}Empty output returns a { summary } note rather than calling the CLI. Errors:
400 (missing log), 403 (disallowed origin), 502 (the claude run failed).
Internal endpoint. Claude hooks (injected per session — see Claude hook injection) POST their event payload here. You normally don't call this yourself.
Request application/json — the Claude hook payload; only these fields are used:
{
"session_id": "d16f43f3-...", // the session the event is for
"hook_event_name": "UserPromptSubmit" // "UserPromptSubmit" | "Stop" | "Notification"
}Effect (see Session model):
hook_event_name |
Effect |
|---|---|
UserPromptSubmit |
working = true for the session. |
Stop |
working = false; if the session is backgrounded, also waiting = true. |
Notification |
If the session is backgrounded, waiting = true. |
Any resulting state change is published on the sessions pub/sub channel.
Response 200 application/json: { "ok": true } (always, even for unknown events).
The endpoints above are the core; the server exposes many more (all under
http://localhost:$PORT; query params shown where relevant). Mutating endpoints are
same-origin-guarded.
Sessions & agents
| Endpoint | Purpose |
|---|---|
GET /api/session/:id?cwd= |
One session's summary — cumulative usage and context (model + last-turn context tokens). Backs the cell token & ctx% badges. |
GET /api/codex/sessions?cwd= |
Codex sessions for the project (from ~/.codex rollouts), newest first. |
GET /api/cost?cwd=&session= |
Estimated $ cost — session / today / month. |
GET /api/transcript/timeline?session=&cwd= |
Per-session activity timeline (tools run). |
GET /api/transcript/last-turn?session=&cwd=&agent= |
A session's last completed exchange (prompt, reply) plus the text to paste into another terminal. agent=codex reads the codex rollout instead of the Claude transcript. |
Git & worktrees
| Endpoint | Purpose |
|---|---|
GET /api/git-status?cwd= |
{ repo, branch, detached, dirty, ahead, behind, upstream }. |
POST /api/git-remote |
The dir's GitHub repo URL (for the header GitHub menu). |
GET /api/worktrees?cwd= · GET /api/worktrees/diff?cwd= |
List managed worktrees / diff one vs its base. |
POST /api/worktrees/create · /remove · /push · /pr |
Create on agent/<slug>, remove (managed root only), push, open a PR (gh, else compare URL). |
GET /api/prs · GET /api/issues |
Open PRs / issues across the configured prRepos (via gh). |
Workspace views
| Endpoint | Purpose |
|---|---|
GET /api/wiki (?slug=) · /api/wiki/graph · /api/wiki/lint |
Read-only wiki index / page / graph / lint. |
GET /api/collections/… · /api/feeds · GET|PUT /api/shortcuts |
Collections browser, feeds, favorites (see docs/collection-plugin-integration.md). |
GET /api/files/browse/{list,text,md} · PUT /api/files/browse/{write,backup} |
File tree / read / Markdown-render / write (contained within the project root). text answers { text, version }; write takes { text, baseVersion } (null = expecting to create it) and answers 409 with the version now on disk if the file changed since — so a save can't silently overwrite the agent that edits the same files. backup banks a buffer the editor is about to discard. |
GET /api/files/raw?path= |
Raw asset bytes (workspace-rooted). |
GUI panel / plugins / MCP
| Endpoint | Purpose |
|---|---|
POST /api/mcp/:sessionId |
Per-session GUI MCP server (Streamable HTTP; GET/DELETE → 405). |
POST /api/plugin/:toolName |
GUI-plugin dispatch (incl. spawnBackgroundChat, manageAccounting, presentHtml). |
GET /api/agent/toolResults/:id · POST /api/agent/toolResult |
GUI-panel result history / persist. |
GET /api/tools · GET /api/tool-calls/:id |
Available tools / tool-call history. |
POST /api/accounting |
Double-entry accounting (bundled plugin). |
Config, sound & misc
| Endpoint | Purpose |
|---|---|
GET|POST /api/config |
User UI config (cwdPresets, soundFile, soundKinds, sounds, prRepos, launchers, quickCommands, userMcpServers, providers). |
GET /api/sound?kind= · /api/dir-sound?cwd=&kind= · /api/sound-preset/:id · /api/dir-config?cwd= |
Custom / per-directory / preset attention sound + per-dir config. kind selects a config entry, never a path. |
GET /api/launch-options |
The Anthropic-compatible backends this server can reach, each with its models and — when it can't — the reason. Reports the name of the env var a key is read from, never the key. |
GET /api/notifications(/history) · POST /api/notifications/:id/clear |
Notification feed. |
POST /api/transcribe(/model…) |
Voice-input transcription (Whisper, macOS). |
POST /api/translation |
Runtime UI-string translation. |
GET /api/remote-host/status · POST /api/remote-host/{connect,disconnect} |
Companion phone-client link. Each response carries the command channel's health (online / reconnecting / offline, plus the last listener error), so the toolbar shows a dropped channel instead of the last state it happened to fetch. |
POST /api/open-dir · POST /api/pick-file |
Reveal a dir in Finder/Explorer; OS file-picker → path ({ directory: true } opens the folder picker — used by the launcher's Working-directory 📁 button). |
The phone itself uses none of these routes — it reaches the host over Firestore command
docs, not HTTP. Every command it can send, and the shapes it gets back, are in
docs/remote-host-protocol.md.
A raw WebSocket carrying the terminal stream for one session. One PTY per connection (or reattach to an existing background PTY).
Connect
ws://host/ws— start a new session (server generates a UUID and spawnsclaude --session-id <uuid> --settings <hooks>).ws://host/ws?session=<id>— resume/reattach a session. If a live background PTY exists for<id>, the socket reattaches to it (and its recent output buffer is replayed); otherwise the server spawnsclaude --resume <id> --settings <hooks>.
Server → client (JSON text frames):
| Message | Meaning |
|---|---|
{ "type": "session", "id": string } |
Sent immediately on connect — the session id this socket is bound to (lets the client learn a new session's generated id). |
{ "type": "output", "data": string } |
PTY output to write to the terminal. On reattach, the first output frame is the replayed tail buffer (≤ 64 KB). |
{ "type": "exit", "exitCode": number, "signal": number } |
The claude process exited; the socket then closes. |
Client → server (JSON text frames):
| Message | Meaning |
|---|---|
{ "type": "input", "data": string } |
Keystrokes / bytes to write to the PTY. |
{ "type": "resize", "cols": number, "rows": number } |
Resize the PTY. |
A non-JSON frame is written to the PTY verbatim (fallback).
Disconnect — when the socket closes, if Claude is still working the PTY is
kept alive in the background; otherwise it's killed. See
Session lifecycle.
Two more raw WebSockets share the /ws frame format (output / input / resize /
exit):
/ws/codex?session=<id>&cwd=<dir>&gui=<0|1>— a Codex agent PTY (see Agents: Claude & Codex). Like/wsit sends asessionframe with the id and reattaches to a live or tmux-backed session on resume.gui=0(grid cells) omits the GUI MCP and keeps the session out of the sidebar./ws/launch?session=<id>&cwd=<dir>&launcher=<index>— a launch command PTY (a plain shell,codex, or any command configured in Settings → Launch commands). Unlike a Run-menu script it's persistent and reattachable (survives page switches / reconnects), but it has no Claude hooks, so its dot only shows running vs. exited.
A raw WebSocket carrying a one-off Run-menu command (see
Scripts (Run menu)) — a plain shell PTY, not a Claude
session, so there's no session message, no hooks, and no reattach.
Connect
ws://host/ws/run?index=<n>&cwd=<dir>— run the script at position<n>in<dir>/script.json(cwd falls back toCLAUDE_CWD). The server reads that file and spawns$SHELL -lc "<command>"in the script'scwd. An out-of-range index (or a missing/invalidscript.json) yields{ "type": "error", "message": string }and the socket closes.
The output / input / resize / exit frames are identical to /ws. There is no
session frame.
Disconnect — the terminal is ephemeral: when the socket closes (cell closed, or page reloaded) the process is killed. There is no background survival and no resume.
A minimal Socket.IO pub/sub for live session-activity updates. Channel names are Socket.IO rooms.
- Path:
/ws/pubsub, transport:websocket. - Client → server events:
subscribewith a channel name (string) → join the room.unsubscribewith a channel name (string) → leave the room.
- Server → client event:
datawith{ channel: string, data: <payload> }.
Channel "sessions" — payloads describe a single session change:
// activity change (working/waiting flipped)
{ "id": "d16f43f3-...", "working": false, "waiting": true, "event": "Stop" }
// a brand-new session was created
{ "id": "…", "working": false, "event": "created" }
// a session's PTY was closed/reaped
{ "id": "…", "working": false, "event": "closed" }event is the originating hook (UserPromptSubmit | Stop | Notification) or
a lifecycle marker (created | closed | null). The client treats any
sessions message as a signal to refetch GET /api/sessions (the server is the
single source of truth for the list), so payload details are advisory.
Per-session state lives on the server (activity map) and is surfaced as two
booleans on every session record:
| Flag | Set when | Cleared when | UI |
|---|---|---|---|
working |
UserPromptSubmit hook fires (Claude started a turn) |
Stop hook fires (turn finished) |
Blue dot next to the title |
waiting |
A background session fires Notification (waiting for input — permission / question / idle) or Stop (finished, output unseen, ready for another message) |
The session is brought to the foreground (a WebSocket attaches to it) | Bold title |
"Foreground" = a session that currently has an attached terminal WebSocket (the
one you're viewing). waiting is only ever set for background sessions,
because a foreground session is already on screen.
new ws /ws ws /ws?session=<id>
│ │
▼ ▼
generate UUID, spawn live bg PTY? ──yes──► reattach + replay buffer
claude --session-id <uuid> │ no
register "New session", ▼
publish "created" spawn claude --resume <id>
│ │
└───────────────┬──────────────────────┘
▼
attached (foreground) ── setWaiting(false) ──► not bold
│
ws close (switch away / disconnect)
│
┌───────── working? ──────────┐
yes no
│ │
keep PTY alive (background) kill PTY (reap), publish "closed"
│
Stop hook in background:
waiting=true (bold), working=false, reap PTY
(flag persists via on-disk record → stays listed & bold until viewed)
Key rules:
- Switching away never interrupts Claude mid-turn — a
workingsession's PTY survives in the background. - A background session that goes idle (
Stop) is reaped (killed). If it finished with unseen output, itswaitingflag persists via the on-disk session record, so it stays listed and bold until you open it. - Reattach over respawn: selecting a session that still has a live background
PTY reattaches to it (replaying a ≤ 64 KB output tail) instead of spawning a
duplicate
claude. - One live viewer per session: a session is bound to a single socket. Opening
it in a second place (another tab, or another grid cell pointed at the same dir)
reattaches there and supersedes the first, which detaches. To avoid doing
this by accident, a grid launcher's resume list flags rows already open in
another terminal (
● open) and asks for confirmation before taking one over. - Brand-new sessions appear in the sidebar immediately (before their
.jsonlexists) via the in-memoryknownSessionsregistry + acreatedpush; an unused one disappears when its PTY is reaped.
Activity is detected via Claude Code hooks injected per spawn, without
touching the user's ~/.claude/settings.json or project settings. The server
passes claude --settings '<json>' where the JSON registers a command hook for
UserPromptSubmit, Stop, and Notification, each of which pipes the hook
payload to the server:
{
"hooks": {
"UserPromptSubmit": [{ "hooks": [{ "type": "command", "command": "curl -s -X POST http://localhost:$PORT/api/hook -H 'content-type: application/json' -d @-" }] }],
"Stop": [{ "hooks": [{ "type": "command", "command": "curl … -d @-" }] }],
"Notification": [{ "hooks": [{ "type": "command", "command": "curl … -d @-" }] }]
}
}Because the server spawns each new session with --session-id <uuid>, it always
knows the live session's id — even before the session's .jsonl file exists.
Claude stores each project's sessions as JSONL files under
~/.claude/projects/<encoded-cwd>/<session-id>.jsonl, where the absolute cwd
has its / and . characters replaced with - (e.g.
/Users/you/proj → -Users-you-proj).
A session's display title is derived by scanning its JSONL for, in order of preference:
- a live AI title the server generated for the session this run (see below),
- else the latest
ai-titlerecord'saiTitle(e.g. written by MulmoClaude), - else the latest
last-promptrecord'slastPrompt, - else the first real user message (slash/local-command wrappers like
<local-command-…>are skipped), - else
"(untitled session)".
In-memory sessions not yet persisted show as "New session" until their file
appears, at which point the on-disk title takes over.
The raw last prompt is a poor cell-header label once a session becomes a
back-and-forth: a follow-up is either a trivial ack (ok, はい — skipped, so the
header keeps showing the now-stale opening task) or context-dependent (2番目にして
— meaningless on its own). So the server summarizes the recent turns with a cheap
model (MT_TITLE_MODEL, default haiku) into a short title and shows it in the cell
header (falling back to the last prompt when there's no title yet).
Generation is kept low-cost — it runs at a turn's Stop (when the reply is on disk)
only when a title is due: none yet, the newest prompt was a trivial/context-dependent
ack (so the raw last prompt would be stale), or every few turns to keep a long session's
title current. The title lives in memory (never written into Claude's own transcript); a
resumed session falls back to any on-disk ai-title.
server/
index.ts Express app, /api routes, upgrade routing, PTY lifecycle,
session state, hook injection, session discovery, GUI-MCP mount
agents/ AgentAdapter seam + per-agent args/sessions: claude.ts,
codex.ts, registry.ts, claude-args.ts, codex-args.ts,
codex-session(s).ts, codex-skills.ts
config/ user + per-directory + header config: app-config.ts,
config-routes.ts, config-schema.ts, dir-config.ts,
cwd-presets.ts, header-*.ts
session/ per-session transcript/activity/cost: transcript.ts,
session-resolve.ts, activity-*.ts, cost.ts,
command-summary.ts, terminal-replay.ts, file-cache.ts
git/ git & GitHub (via gh) + worktrees: git-status.ts, gitRemote.ts,
gh.ts, prs.ts, issues.ts, pr-for-branch.ts, worktrees.ts, worktree-*.ts
files/ files-browse.ts (contained tree read/write), pick-file.ts,
open-dir.ts, scripts.ts (Run-menu script.json loader)
infra/ process/transport/misc: tmux.ts, tmux-routes.ts, sandbox.ts,
pubsub.ts (socket.io /ws/pubsub), spa-fallback.ts, host-tools.ts,
plugins-registry.ts, web-push.ts, install-bundled-skills.ts, accounting-tool.ts
mcp/ per-session MCP broker
backends/ wiki, collections, feeds, accounting, notifier,
translation, whisper, remote-host, html, files
skills/ bundled skills (mulmoterminal-config, mulmoterminal-bug-report)
fix-pty-perms.js postinstall: fixes node-pty binary permissions
src/
App.vue Layout; owns the active session + single/grid view
router/ Vue Router routes (/, /terminals, /collections,
/accounting, /prs, /files, /wiki, …)
components/
Sidebar.vue, SessionTabBar.vue session list + tab bar (pub/sub driven)
Terminal.vue xterm.js terminal; /ws, /ws/codex, /ws/run
AppToolbar.vue shared header + toolbar buttons
GridView.vue, TerminalGrid.vue, TerminalCell.vue, CommandCell.vue, LauncherCell.vue
GuiPanel.vue, PluginFrame.vue GUI panel (Canvas) + Shadow-DOM plugin host
FilesOverlay.vue file browser + CodeMirror editor
GitBranchChip.vue, ModelContextBadge.vue header chips / badges
PrsOverlay.vue cross-repo PRs & Issues
Wiki*View.vue, Collections*.vue, AccountingOverlay.vue workspace views
TimelineOverlay.vue, ToolsPane.vue, NotificationBell.vue, RemoteHostControl.vue
SettingsModal.vue ⚙ settings
composables/ useSessions, usePubSub, useGitStatus, useCost,
useChatLauncher, useFilesView, useWikiBrowse,
useCollectionBrowse, useNotifications, useVoiceInput, …
common/ Shared by server/ and src/ — both tsconfigs include it, so a value or
wire type either side decides from belongs HERE, never mirrored in both:
dirChrome.ts, ghItems.ts, gitStatus.ts, launchOptions.ts, shortcuts.ts,
sourceExtensions.ts, modelPresets.ts, modelIds.ts, theme*.ts, …
vite.config.ts Dev proxy for /ws (+ /ws/codex, /ws/launch, /ws/run), /ws/pubsub, /api, /artifacts
vitest.config.ts jsdom test environment
yarn testsrc/components/Sidebar.spec.ts covers the sidebar: rendering the server's
session list, the working dot, the waiting bold state, refetching on a pub/sub
push, and emitting select on click. The pub/sub composable and fetch are
mocked so the tests run without a server.
{ "name": "PROD · payments", // badge shown on this directory's terminals "badgeColor": "#cf222e", // badge color (hex #rrggbb) "headerColor": "#190a23", // cell header background (hex #rrggbb) "headerTextColor": "#ffffff", // cell header text color (hex #rrggbb) "cellColor": "#101014", // cell body background (hex #rrggbb) "cellBorderColor": "#2a2a4e", // cell border color (hex #rrggbb) "dotColor": "#00e676", // idle status dot (hex #rrggbb) "buttonColor": "#c7cdf0", // header icon buttons (hex #rrggbb) "theme": "nord", // terminal palette: midnight | nord | daylight | solarized "colors": { "background": "#190a23", "cursor": "#ff2e63" }, // per-key palette overrides "fontSize": 16, // terminal font size in px (8–32); overrides Settings "fontFamily": "'Cica', monospace", // terminal font stack; overrides the global config "sound": "./.mulmoterminal/alert.mp3", // attention sound, RELATIVE to this directory "sounds": { "command-failed": "preset:gong" } // per-notification-kind override }
